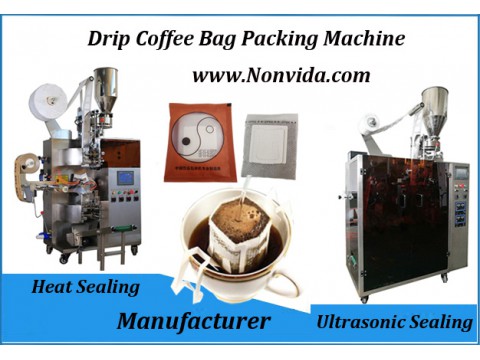

Multifunctional drip coffee bag packing machine

Hanging Ear Drip Coffee Bag Packing Machine is suitable for Drip coffee bag with outer envelope, available with coffee, tea leaves, herbal tea, health care tea,and other small granule products.

Feature of Hanging Ear Drip Coffee Bag Packing Machine:
1 Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
2 Adopts PID temperature controller for more accurate temperature adjustment.
3 Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.
4 It can make inner and outer bag in same time automatically, which would highly improve the working efficiency.
5 The process of bag making measuring, filling, sealing, cutting, logo positioning, counting can be finished automatically.
6 All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.
7 Some parts of the cylinder are imported, ensuring the accuracy and stability of performance.
8 Adopts automatic conveyor system.
9 Machine reserved a connector to link with Nitrogen gas generator so that it can flush the nitrogen into bag to extend product shelf life.
10 Optional devices: Date code printer, nitrogen gas generator, etc.

Standard Technical Data of Hanging Ear Drip Coffee Bag Packing Machine:
Type:Drip Coffee Packing Machine Series
Product name: Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine
Bag type:  3 side sealing
Outer Bag size:   L:85~120mm,W:75~100mm  (Film width 200mm, Bag size: 120*100mm)
Inner Bag size:   L:50~75mm, W:50~90mm  (Filter paper width 180mm, Bag size: 90*75mm)
Packing speed: 40~70 bags/min
Filling range: 5~15g; accuracy:≦±0.1g/bag
Measuring: Volumetric cup
Inner Packing material  Filter paper; Nylon filter mesh
Outer packing material Kraft paper/aluminum coating; PE/aluminum coating; PE film
Ultrasonic device: 2 Sets
Sealing method:  Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing.
Power: Single phase, 220V, 50HZ, 1.5KW
Air supply: ≧0.6Mpa (Can be equipped with Air Compressor)
Weight: 600KG

Dimension (L*W*H): 1200*900*1900mm
