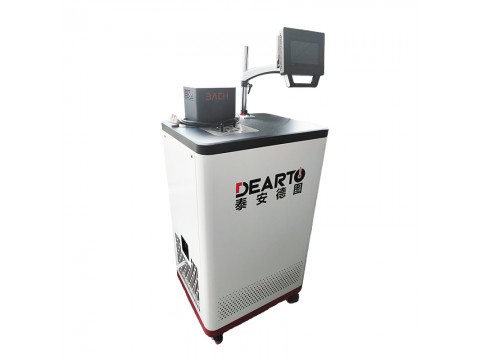

DTS-T high and low temperature thermostatic bath technical index is consistent with the original ordinary constant temperature bath, in the temperature range to meet the different needs of customers, so that customers originally need two different constant temperature baths to complete the test, can be completed in a bath body, with rapid lifting and cooling function, For customer verification pressure thermometer, bimetallic thermometer to provide backhaul measurement function, convenient for customers to use.
Technical indicators
|
Product name |
High low temperature thermostatic bath |
||
|
Model |
DTS-T150 |
DTS-T180 |
|
|
Temperature range |
-20~150℃ |
-20~180℃ |
|
|
Working medium |
Special anti-freezing oil |
Special anti-freezing oil |
|
|
Uniformity of horizontal temperature field |
0.010℃ |
0.010℃ |
|
|
Uniformity of vertical temperature field |
0.010℃ |
0.010℃ |
|
|
Temperature fluctuation :℃/10 min |
0.010℃ |
0.010℃ |
|
|
Work area dimensions |
φ130×480, 9L |
φ130×480, 9L |
|
|
Medium volume:(L) |
18L |
18L |
|
|
Maximum power :(KW) |
2.8 |
2.8 |
|
|
Dimensions :(mm) |
660(L)×540(W)×1120(H) |
||
|
Quality :(Kg) |
120 |
120 |
|
Can be upgraded to a intelligent touch screen version of the thermostatic bath.
