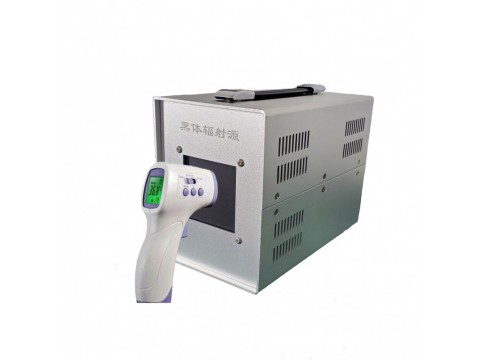

The DTR-30B is a small size blackbody calibration source utilizing a digital indicating temperature ambient 30℃ to 50℃ (86F to 122F). A 70x70 mm size ridged plate is heated or cooled with an internal solid state thermoelectric heat pump. It has a built-in digital temperature controller to provide accurate, stable temperature as well as to provides readout.
APPLICATION
l Ambient temperature compensation for thermal image camera
l Test infrared thermometer
l 0.05℃ high stabillity
l Calibrate from 30℃ to 50℃
l Quickly heat up to 50℃ in 10 minutes
l Target size is 70mm x 70mm
l Built-in temperature correction function
l Quick and easy operate
l Portable and light weight
|
Temperature Range |
30℃ to 50℃ (32F to 122F) |
|
Aperture size |
70 mm * 70 mm |
|
Emissivity |
0.97 ± 0.02 |
|
Display accuracy |
± 0.05℃, (uncertainty is 0.2℃, K=2) |
|
Display resolution |
0.01℃ |
|
Control stability |
± 0.05℃ after 10 minutes |
|
Blackbody uniformity |
± 0.05℃ |
|
Heat cavity shape |
Plat Plate |
|
Heat up time |
10 minute from ambient to 50℃ |
|
Control method |
Digital PID controller with readout |
|
Temperature sensor |
Precison platinum RTD |
| Power supply | 110-220V AC, 50Hz, 60W |
|
Interface |
RS232 |
|
Dimension |
250mm(D) x 140mm(W) x 180mm(H) |
|
Net weight |
Appr. 2 kg |
