Item |
ZP8 |
ZP10 |
ZP14 |
ZP20 |
|
Station (stations) |
8 |
10 |
14 |
20 |
|
Max. main pressure (kN) |
60 |
60 |
60 |
40 |
|
Max. pre-pressure (kN) |
10 |
|||
|
Max. tablet dia. (mm) |
22 |
18 |
13 |
|
|
Max. tablet thickness (mm) |
8 |
|||
|
Turn speed (r/min) |
8-20 |
|||
|
Dia. of punch (mm) |
38.1 |
30.16 |
||
|
Capacity (pcs/h) |
3800-8400 |
4,800-12,000 |
6700-16800 |
9600-24000 |
|
Overall size (mm) |
710*700*1680 |
|||
|
Weight(kg) |
500 |
|||
|
Power(kw) |
1.1 |
|||

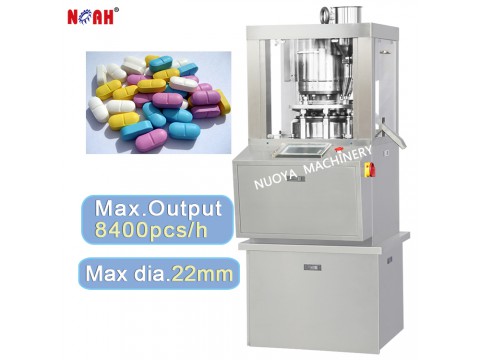

Application:
This machine is compact, intelligent rotary tablet press, suitable for the small size production of tablets in the medicine R&D center and laboratories in the pharmaceutical industry.
Product Detail:
1. Single-pressing type, outputting tablets from one side. Use IPT punch dies.
2. It has double-pressing function, I. E., pre-pressing and main-pressing, the tablet quality will be improved.
3. Utilize the variable frequency stepless speed control device, easy to operate, safe and reliable.
4. Utilize the PLC and touch screen, capable of displaying and setting various parameters conveniently and intuitively.
5.Equipped with overload protection device.
6.The rotary table surface is treated specially, capable of keeping the surface finish and avoiding the cross pollution, compliant with GMP requirements.
