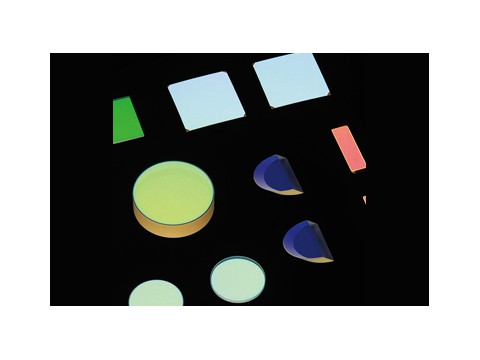

Mirror
Mirror is a reflecting surface that forms an image of an object when light rays coming from that object fall upon it. Usually mirrors are made of plate glass, one side of which is coated with metal or some special preparation to serve as a reflecting surface.
UPT offers dielectric coated mirrors and metal coated mirrors which are made of substrate such as Bk7, K9, Fused Silica, CaF2, Sapphire.
Specifications:
|
Material:
|
BK7 Grade A Optical Glass
|
|
Typical Diameter (Φmm)
|
8.0, 10.0, 12.7, 15.0, 20.0, 25.4, 30.0, 50.8
|
|
Typical Thickness (mm)
|
2.0, 3.5, 5.0, 6.5
|
|
Diameter Tolerance (mm)
|
+/-0.2 (General), +0.0/-0.02 (High Precision)
|
|
Thickness Tolerance (mm)
|
±0.2 (General), ±0.05 (High Precision)
|
|
Clear Aperture
|
>80% (Small Size), >95% (Large Size)
|
|
Parallelism
|
6 min. (General), 3 sec. (High Precision)
|
|
Surface Quality
|
80/50 (General), 10/5 (High Precision)
|
|
Flatness (per 25mm@633nm)
|
λ(General), λ/10 (High Precision)
|
|
Bevel (face width x 450)
|
<0.25mm
|
|
Coating
|
Uncoated, HR, PR, metal -Ag, Al, Au Coating, etc.
|
Note for Mirror:
(1). Other optical glass or optical crystals of Mirrors are available.
(2). Custom-made Mirrors with any size from diameter 2mm to diameter 280mm and with shape of quadrate, triangular or other special sharp are available upon request.
(3). Thickness from 1mm to 30 mm are available upon request.
(4). Typical surface quality is 60/40, better precision such as 40/20,10/5 is available upon request.
