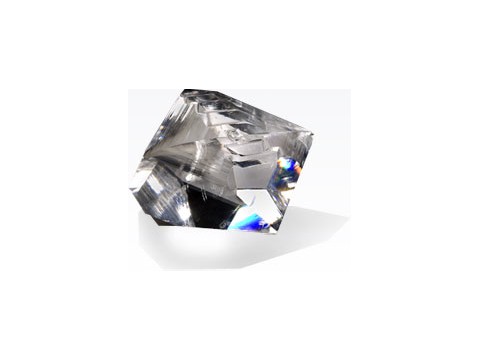

LBO Crystal (Lithium Triborate Crystal)
LBO crystals is an excellent nonlinear crystal. For frequency doubling(SHG),tripling(THG) of Nd:YAG,Nd:YLF,Nd:YVO4 lasers, it is one of the most useful nonlinear optical materials in ultraviolet and visible laser applications.
Advantages:
• broad transparency range from 160nm to 2600nm (see Figure 1);
• high optical homogeneity (δn≈10-6/cm) and being free of inclusion;
• relatively large effective SHG coefficient (about three times that of KDP);
• wide acceptance angle and small walk-off;
• type I and type II non-critical phase matching (NCPM) in a wide wavelength range;
• spectral NCPM near 1300nm.
• high damage threshold(18.9 GW/cm 2 for a 1.3ns laser at 1053nm);
LBO has the highest damage threshold in all the commonly-used inorganic NLO crystals. Therefore, it is the best candidate for high average power SHG and other nonlinear optical processes.
|
Comparison of Bulk Damage Threshold (@1053nm ,1.3ns)
|
|||
|
Crystal
|
Energy Density (J/cm 2 )
|
Power Density (GW/cm 2 )
|
Ratio
|
|
KTP
KDP BBO LBO |
6.0
10.9 12.9 24.6 |
4.6
8.4 9.9 18.9 |
1.00
1.83 2.15 4.10 |
LBO's main applications
• SHG, THG of Nd lasers
• SHG of Ti:Sapphire, Cr:LiSAF and Alexandrite lasers
• OPA and OPO
UPT offer LBO specification:
|
Tolerance of dimension
|
Dimension+/-0.1 mm，L：±0.1mm
|
|
Flatness
|
λ/8 @ 632.8nm
|
|
Wavefront distortion
|
<λ/4@ 632.8nm
|
|
Surface quality
|
10/5 per MIL-O-13830A
|
|
Parallelism
|
10″
|
|
Perpendicularity
|
5′
|
|
Bevel/chamfer
|
<0.1mm@45deg.
|
|
Chips
|
<0.1mm
|
|
Angle Tolerance
|
△θ≤±0.5°, △φ≤±0.5°
|
|
Coating
|
AR/HR/P- coating Upon request
|
|
Warranty
|
One year under proper use
|
Note: OEM Dimension, different axis angle cutting and coating and damage threshold upon request, others are available upon request.
