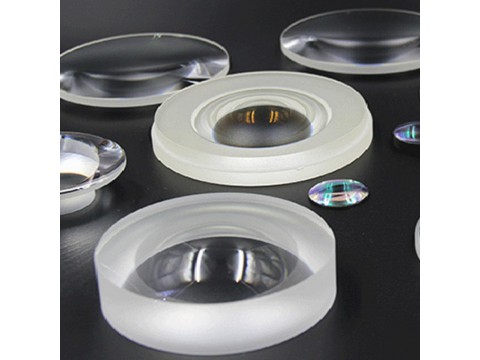

Achromatic Lenses
These lenses are made of BK7, fused silica and CaF2. Special focusing systems can be designed by our engineers upon request.
|
LENSES
|
MATERIALS
|
ILLUSTRATION
|
PROPERTIES AND APPLICATIONS
|
|
ACHROMATIC LENS
|
Combinations of Two Optical Grade Glasses
|
|
These lenses have considerably reduced values of spherical aberrations. Best used to replace single components where performance must be improved.
|
Specifications:
|
Diameter size
|
smallest 3 mm
|
|
Diameter tolerance
|
+0.0, -0.05mm
|
|
Parallel focal length tolerance
|
±2%
|
|
Centration
|
5 arc minutes
|
|
Clear aperture
|
>80%
|
|
Surface figure: power(n)
|
<3
|
|
Surface figure: irregularity(n)
|
<0.5
|
|
Surface quality
|
40/20 scratch and dig
|
|
Bevel
|
< 0.2 mm x 45°
|
|
Coating
|
Single layer MgF2 broadband AR
|
Note for Lens:
(1). Lens made from materials such as N-BK7, Fused Silica, Sapphire, CaF2, Borofloat, or other optical glass supplied by Schott and Chinese CDGM are available upon request.
(2). Custom-made Lens at any size from Φ3.0mm to Φ200mm clear aperture are available.Besides round, Lens at shape of square are available.
(3). 90% clear aperture is available upon request.
(4). Better bevel is available upon request.
(5). Lens with Anti-Reflective (AR), Single layer MgF2 coating are available.
