Prison Mesh Security Fence

Prison mesh is a kind of secure-net anti-climbing fencing panels with close mesh openings. Also called high density mesh fence or anti-terrorist mesh fence. It is designed specially for High Security Prison Fencing with high strength steel post, high density welded mesh panel, firm fittings and integrated security annex configuration(saw tooth, extension arms, barbed wire or razor concertina wire ribbon rolls).
Three types: Hot-dipped Steel 358 Mesh, Galvanized and Powder Coated Welded Mesh in black or green color, and Galfan Wire.

PVC Powder Coated Anti Climb 358 Mesh for Prison Perimeter Fencing

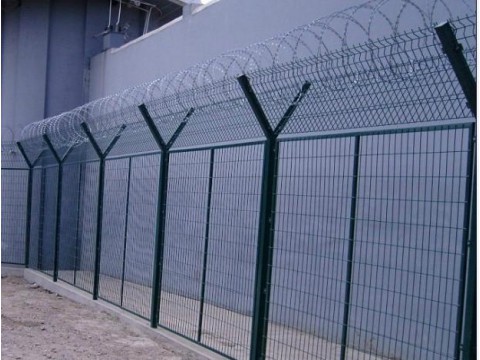

Prison Mesh Fencing System Installed with Y Posts and Concertina Razor Wire Ribbons

Anti-cut and anti-clamp design makes the fence an incredibly robust fencing. 358 Prison Mesh is highly regarded as the most difficult fence to penetrate, providing an excellent barrier against climbing and cut-through.
Prison Mesh Common Specifications:
1/2"*3"*8 gauge
Panel size from 2m to 4m
Two types of materials: Hot-dipped galv or PVC coated after galv.
Hole size:12.7x75.2mm with wire dia:4mm
Tensile strength: 540-615N/mm2

Material:
Low carbon steel wire, hot dip galvanized, or plastic coated, or Galfan wire.
Fence Height:
1.8m, 2m, 2.4m, 2.7m, 3.0m, 4.0m, 5.2m

Mesh size:
76.2mm x 12.7mm
Horizontal Wires:
4mm --6mmx 12.7mm centers

Vertical Wires:
4mm --6mmx 76.2mm centers
Post Centers: 2.5mm

Benefits of Using:
High security fence, anti-climb and anti-cut;
Flat panel that gives improved aesthetic appearance;
Maximum strength and security;
Excellent through vision;
Wide range of colour options;
Available as a complete system with flat panels, steel posts, extensions, razor wire or concertina.

Application:
Welded 358 prison mesh is used for schools, Industrial & Commercial Sites, Infrastructure and various High Security fencing uses.
