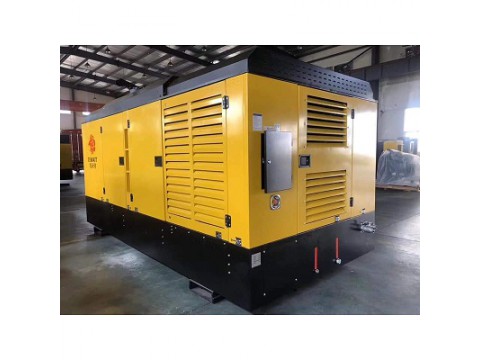

1700/1500CFM Mobile Oil Free Screw Air Compressor
Product Description
TEWATT 1700/1500 CMF & 8.6/10 BAR Mobile oil free screw air compressors are equipped with high efficiency TEWATT two stage air-end, powered by CUMMINS heavy duty industrial engine , low fuel consumption with global warranty. Tewatt mobile oil free screw air compressors always meet the operation requirements in extremely high & low temperature, heavy dust, high altitude environment. Suitable for water well drilling, geothermal air drilling,oil & gas exploration, mining & DTH drilling etc.
Features&Benefits:
Tewatt Screw Air-end Super rotor, low speed (5 years/10000 hours warranty)
Strong power, fuel saving CUMMINS Engine with Global Warranty Service.
Tewatt Intelligent Controller.
Safe and Reliable Air Filter & Intake System.
https://www.tewatt.com/product-list-diesel-air-compressors.html
Technical Specifications:
|
Model |
TWT1170D-10.3T(OFD) |
|
Compressor Stage |
Two |
|
Free Air Delivery (CFM/ M3/min) |
1700/1500 (45/43) |
|
Working Pressure (psig/bar) |
125/145 (8.6/10) |
|
Lubricant Oil |
/ |
|
Engine Manufacturer |
CUMMINS |
|
Engine Model |
QSX15-FR11110 |
|
Rated Power (HP/KW) |
600HP/448KW |
|
Rated Speed/Idle (rpm) |
1750/1600/1350 |
|
Fuel Consumption (75%) |
74L/H |
|
Battery Voltage (V) |
24V |
|
Fuel Tank Capacity (L) |
800 L |
|
Discharge Connections |
3”NPTx 1, 1”NPTx1 |
|
Wheel Size*Qty |
21x12-16X4 |
|
Weight (Kgs) |
9600Kg |
|
Dimension (mm) |
6400*2250*2580mm |
|
Noise {dB(A)} |
76±5 |
|
Working Temp.(℃) |
-10℃~50℃(special conditions can be customized) |
