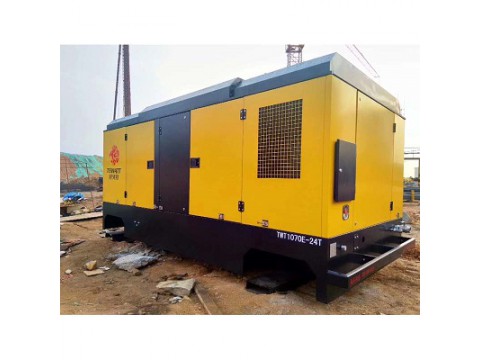

1070CFM/24BAR High Pressure Mobile Electrical Air Compressors
Product Description
TEWATT 1070CFM/24BAR high pressure Electrical air compressor adopt state of the art high efficiency famous motors, low consumption, low maintenance cost and low noise strict comply with the NEMA and IEC standard. Tewatt high pressure motor Compressors always win the market and customers trust by its low consumption, high efficiency, easy maintenance, easy operation, and long service life characters. It Always meet the operation requirements in extreme high & low temperature, heavy dust, high altitude environment. Those applications are Widely used such as tunneling project, ship sand blasting, infrastructure construction, oil/gas field, mine blasting and other drilling fields which have electricity supply.
Features&Benefits:
Tewatt Screw Air-end Super Rotor, low speed (5 years/10000 hours warranty)
International Warranty Service covered high efficient motor with IP54 protection
High standard Controller System, easy to play
Safe and Reliable Air Filter System
Advanced &Energy-saving Intake System .
Technical Specifications:
|
Model |
TWT1070E-24T |
|
Compressor Stage |
Two Stage |
|
Free Air Delivery (CFM/ M3/min) |
1070/30.3 |
|
Working Pressure (psig/bar) |
348/24 bar |
|
Screw Oil Volume-(L) |
140L |
|
Motor |
|
|
Motor Model |
YE2-355M2-4 |
|
Rated Power (KW) |
250 KW |
|
Rated Speed/Idle (rpm) |
1490 |
|
Connector Size*Qty |
G3/4" *1, G 2"* 1 |
|
Wheel Size*Qty |
7.50-16*4 |
|
Weight (Kgs) |
5500Kg |
|
Dimension (mm) |
4885*2100*2700mm |
|
Noise {dB(A)} |
72±3 |
|
Working Temp.(℃) |
-10℃~50℃(special conditions can be customized) |
Note: Specifiations are subject to change without further notice.
