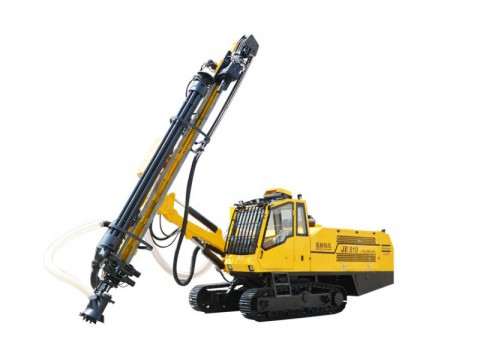

JK810 All In One Hydraulic DTH Drilling Rig
With less price and more equipment, JK810, the most cost-effective representation product of JK Drilling and Atlas Copco as the solution to the integration of drilling rig and air compressor, is set to revolutionize your imagination.
JK810 is an All-In-One hydraulic DTH drilling rig, which brings you more automation, higher working efficiency, better reliability and simpler operation. The FOPS-approved cabin and automatic pipe handling system come standard. Heavy-duty undercarriage with wide tracks ensures both extreme maneuverability and improved safety. The hydraulic dust collecting system meets the latest environmental protection regulations and it's a reliable solution to realize the modern green mining.
|
General |
Weight |
kg |
14300 |
|
Length |
mm |
9920 (transport) |
|
|
Width |
mm |
2400 |
|
|
Height |
mm |
3300 |
|
|
Undercarriage |
Track width |
mm |
350 |
|
Ground clearance |
mm |
≥400 |
|
|
Track oscillation |
° |
±10° |
|
|
Walking speed |
km/h |
2 (low) / 3 (high) |
|
|
Grade ability |
° |
20° |
|
|
Engine |
Model |
QSL8.9-C360-30 |
|
|
Type |
Water-cooled six-cylinder EFI diesel engine |
||
|
Rated power |
kw/rpm |
264/2100 |
|
|
Fuel tank capacity |
L |
450-500 |
|
