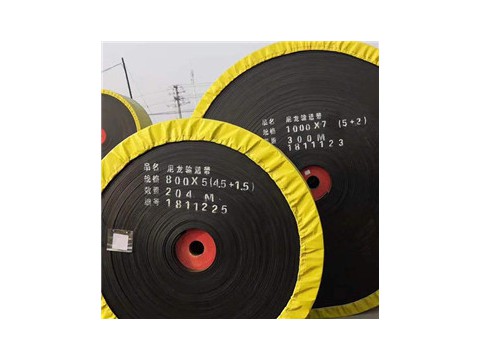

NN EP canvas conveyer belt used in very low temperature has the characteristic of cold-resisting, can be used under a circumstance of -40°C and can not break.
Custom nylon conveyor belt Hengguang Application: suitable for conveying materials outdoors in freezing area, cold storage, etc.
Technical index of NN EP canvas conveyer belt used in very low temperature:
1. NN EP canvas conveyer belt used in very low temperature can be divided into three types, according to the properties of cover: laceration resistant type(H),abrasion resistant type(D) and ordinary type(L).
2. According to the different cold resistant, it can be divided working temperature: from -45 to 50 degree into two types of C1 and C2-Working temperature: from -45 to 50 degree.
NN EP canvas conveyer belt used in very low temperature:
The physical performances of cover rubber:
|
Item |
Index |
|||
|
H |
D |
L |
||
|
Tensile strength, Mpa≥ |
24.0 |
18.0 |
15.0 |
|
|
Elongation at break, %≥ |
450 |
400 |
350 |
|
|
Aging test (70°C.7d) |
|
|
|
|
|
Change rate of the tensile strength, % |
±25 |
±25 |
±25 |
|
|
Change rate of the elongation at break, % |
±25 |
±25 |
±25 |
|
|
Abrasion value, mm³≤ |
120 |
100 |
200 |
|
|
Cold resistant coefficient at elongate, ≥ |
C1(-45°C) |
0.3 |
||
|
C2(-50°C) |
0.2 |
|||
|
Remarks: H-laceration resistant type D-abrasion resistant type L-ordinary type |
||||
