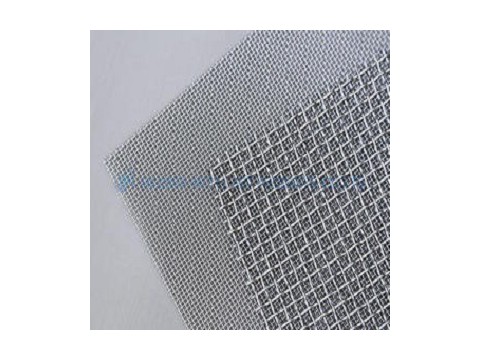

Stainless Steel Wire Mesh

Stainless steel wire mesh is made of stainless steel wire through warp and weft woven.

Mainly used for the filtration and screening of gas, liquid and solid, the separation of media and so on.

With resistance for acid, alkali, high temperature and grind, it is widely used in industries like petroleum, chemical, automotive, new energy, food, pharmaceutical and others.

According to the opening type and woven type, the stainless steel woven mesh can be divided into square mesh(plain weave, twill weave), dutch weave mesh(plain dutch weave, twill dutch weave, double warp dutch weave, reverse plain dutch weave, reverse twill dutch weave, optimized design).

Square mesh: generally the wire diameter of warp and weft are the same, the mesh count of warp and weft are the same(rectangular mesh are not the same for warp and weft mesh count), weaving type can be divided into plain weave and twill weave.

Dutch weave mesh:

The stainless steel dutch weave mesh are also called dutch mesh, dutch cloth. It is made of high quality stainless steel wire. The main feature is that the wire diameter and density in the warp and weft direction are quite different, so the mesh thickness, filtration accuracy and the life time are obviously improved compared with the suqare mesh, specially on the filtration rate, it is not realized by the square mesh. The reverse dutch weave mesh is a special filter mesh, with warp mesh count obviously bigger than weft mesh count, and the warp wire diameter smaller than weft wire diameter. It is more difficult to weave than the plain dutch weave mesh, with high mesh strength, high filtration accuracy and high efficiency. The ducth weave mesh is mainly used in industries like aerospace, petroleum, chemical industry and others. It is suitable for filtration of plastic wire drawing machine, tape casting machine and film coating machine, such as plastic woven bags, plastic film, ink box, sewage treatment, etc.

358 security mesh  Application:

Since our woven wire mesh is extremely versatile and easy to install, they can be used in a variety of applications. Examples of common applications include:

1. Used in Acid,Alkali environment screening mesh and filtration filter

2. For a slurry net Petroleum industry

3. Chemical fiber industry

4. Filtering liquid and gas

5. Used for Mechanical accessory security etc.

Packing: wrapped with water-proof paper, then in wooden cases or pallet

Stainless Steel Wire Mesh Note:

1. Standard roll length 30m, Width 1m, 1.2m, 1.5m, 2.0m etc.

2. Packing: water-proof paper, woven bag and also can be made as per client's requirement.

3. Mesh counts: Specification of Square Mesh.
