Product features

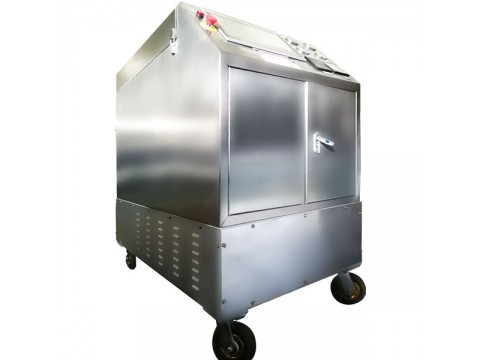

This device uses the exquisite shell to cover all components to protect the equipment from external pollution . And it is especially suitable for occasions with high requirements for the use environment.
This device includes a professional gear pump driven by a motor .And this gear pump has the characteristics of low noise, strong self-priming ability, and stable operation.
·
The high-pressure pipeline is equipped with an overflow protection device, which can effectively protect the safety of the hydraulic system.
The equipment adopts thermal relay protection to prevent motor damage caused by motor overload .
The coarse filter at the suction port protects the oil pump and prolongs the service life of the main filter.
The primary fine filter can filter out relatively large particle impurities, and stages 2 to 7 are fine filters, which can filter out small impurities.
The fine filter can be selected and adjusted according to the different needs of customers to provide better protection for the system.
The filter shell adopts quick opening structure, which can quickly open the upper cover and replace the filter element without any tools.
There is a washable magnetic filter element in front of the pump.
The filtering accuracy is high, the filtering accuracy can reach level 3 NAS 1638 according to the working conditions.
