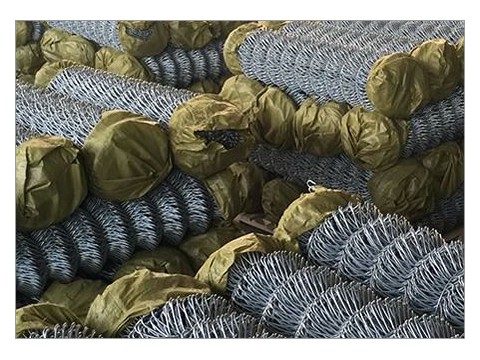

Click image to view original image
Alu alloy coated chain link fence offer the following features:
Corrosion resistance, lightness, long life time, high tensile and easy installation, suitable to the harsh sea / ocean environment.
Standards meeting:
ASTM A 491 Aluminum-Coated Steel Chain link Fence
ASTM F567 Installation of Chain Mesh Fencing.
ASTM A 817 metallic-Coated Wire for use in Chain-link Fence Fabric (Fencing, Wire and Post metal)
Popular sizes
Material: Aluminized wire.
Opening in inches: 1, 1.5, 2, 2.25, 2.4, 2.5, 3 and 4 inches.
Wire diameter: BWG 19-BWG 8 (1.0mm to 4.20mm ).
Length of the roll: 1.0 to 50m.
Width of the roll: 0.5 to 5.0m.
Exported Products with Details
Perimeter Fence System for Dubai – UAE, including four parts:
1- Chain link Fence:
a- Opening : 50mm
b- Wire diameter : 3.50mm after coated
c- Length of the roll : 15m
d- Width of the roll: 2m
e- Surface: Aluminium coating or galv.
2- Columns / Posts: Aluminized finish
a- Length of column : 2600 mm
b- Diameter : 2.5 inches
c- Post wall thickness : 3 mm
Column posts, at end of column will be italic angle of 45 degrees, containing 3 slots to enter Barbed wire.
