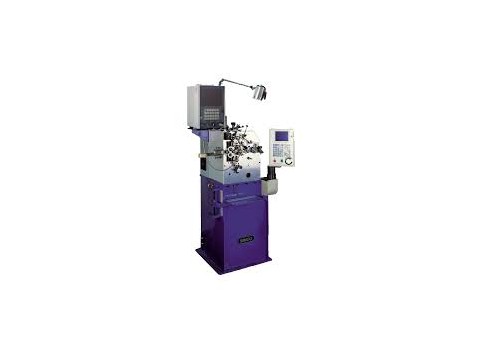

CNC Spring Making Machine CK316

This machine is made up of three servo motors, CNC control system(include measurement), and rtc. It is easy to operate, suitable for making various high precision springs. The main parts of the machine are carefully made ofhigh abrasion resistant material. Themachine features advanced technology and high precision, is customer's favorite choice for making springs.<a href="https://www.cyspringmach.com/product/ck-spring-making-machine/">Spring Making Machine</a>

Model
CK316
Wire Diameter(mm)
40.3-41.6
Outside Diameter(mm)
Maxp32
Production Rate
≤300
Feeding Length（mm）
±0.01-±9999.99
Wire Feed Speed
0-135m/min
Can Setting Value
±0.1°-±359.9°
Wire Feed Servo
Moter
1.5
Cam Servo
1.5
Pitch Servo
0.4
Power AC
Three phase380V.AC.50HZ
Dimensions(LxWxH)(mm)
1050×880×1600
Machine Weight
550

At present, the company's products are mainly exported to dozens of countries such as the United States, Russia, South Korea, Turkey, India, Brazil, Mexico, Argentina, Malaysia, Vietnam, South Africa, etc. Many of the cooperative customers are the largest local spring manufacturers. The company will always adhere to customer-centric, pursue the perfect combination of character and technology, and work together to innovate and create brilliance together.
If you interest in our products, please click our website https://www.cyspringmach.com/ or contact us James@goldlionspring.com.cn.
