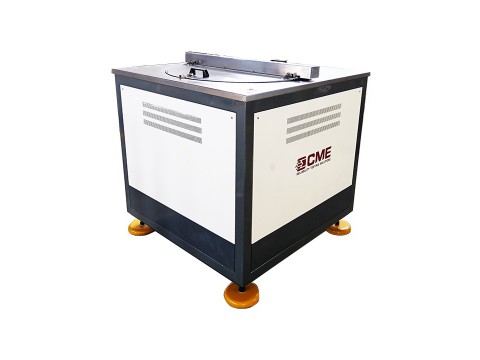

KRD32 series non-standard centrifugal constant acceleration testing machine is test equipment for military products to simulate dynamic centrifugal motion, dual-environmental force centrifugal motion and central high-speed rotating motion, so as to assess the anti-load performance of electronic components, small components and other electrical and electronic products and detect the anti-load performance specifications. It is mainly used for routine dynamic structural integrity and adaptability tests of components, small parts and small complete machine on aircraft.
l The acceleration rising rate is large.
l Computer centralized control and measurement.
l Fully digital network closed-loop remote control, high control accuracy
l Complete safety protection functions
Technical Specifications
Model
Parameters
KRD32－1
KRD32－2
KRD32－3
KRD32－4
KRD32－5
Dual-environment
constant acceleration tester
High-speed spin
tester
Centrifugal
dynamic overload tester
Spin shock
compound tester
Centrifugal
vibration compound tester
Max. Load (kg)
5
5
50
3
1000
Max Acceleration
(g)
150
/
20
Shock 10000g--1ms
50g
Loading Rate
(g/s)
Customized
/
10
/
Standard Electro-Dynamic Shakers specifications
Installation
Radius (mm)
Customized
/
1500
/
Customized
Max. Rotating
Speed
(R/Min)
0-3000
0-100000
/
0-10000
/
Collector Ring
Optional according to user requirements
Control Method
Fully closed-loop digital network (remote) automatic
control + manual control
Power Supply
3-phase AC 380V±10％ 50Hz
Working
Environment
Temperature range 0～40℃, Humidity≤80% (non-condensing)
Installation
Condition
Foundation-free, working distance of 800~1000mm shall
be reserved around the equipment
According to the foundation drawings provided by the
manufacturer
Standards
MIL-STD-810 IEC68-2-7
