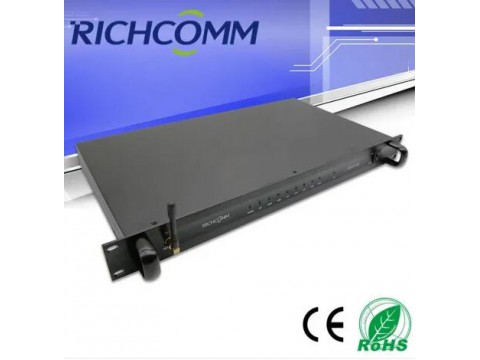

SitemateII

Server Environment Monitoring for Small Data Center

Server environment monitoring products enable you to actively keep track of the problems in your shelf, server room, information centre or anywhere else you require to safeguard essential possessions. The problems kept an eye on consist of severe temperatures, humidity, power spikes and surges, water leaks, smoke and chemical materials. With appropriate environmental monitoring, you look out to any type of problem that might have a negative impact on your mission-critical tools. These items can likewise notify you to prospective damage from human error, hacking or spying fingers.

https://www.richcommdcim.com/product-sitemateii.html

Overview

Server environment monitoring is specially developed and researched for small data center, it is based on IP network technology, supports UPS monitoring and server environment monitoring detection (temperature, humidity, smoke, leakage, motion, door contact, gas, etc) in one host. SitemateII provides fast interface visiting and user settings via web browser, once an abnormal alarm happens, it will rapidly give alarm notifications with email, SMS, sound light, etc, for a real sense to guarantee 7*24 hours unattended data center.

Product Function



Support advantage encryption protocol such as HTTP, HTTPS, SSL, SSH, SNMPV1\V2c\V3;



Support telnet, supper terminal, WEB page configuration;



Compatible with multi-brand and multi-type of UPS;



Support to add on 20 pieces of Temp&Humid sensors via RS422/RS485 ports;



With 16 digital input terminals, support to add on dry contact type detectors;



With 5 digital output terminals, support to add on relay output control;



Support 8 analog input signal detect;



Support SNMP trap,E-mail alarm notification;



Support IPV4/IPV6;



Built-in optional GSM Modem, support SMS query or alarm notification;



Support scheduled task(regular self-testing, switch on/off);



Support history events and data record storage;



Comprehensive event handle( including event record and notification);



Comprehensive managing function( data logs, SNTP and task schedule);



Available to work with centralized software.

Technical Parameters

CPU	32-bit ARM926EJ-S core 300 MHz high speed processor(CPU)
RAM	64Mbyte SDRAM	Flash ROM	128M byte and Flash
Network Interface	10/100Mbps high speed Ethernet self adaptive
Device Ports	1 RS232 asynchronous serial port;
	1 RS422/485 add on port
	16 Digit input terminals (0-5V TTL level);
	8 Analog input terminals (0 ~ 5V linear level);
	5 Digit output terminals (12VDC / 1A).
Browser Support	Internet Explore, Netscape or compatible browsers.
SNMP MIB	Support MIBII (RFC1213, RFC1315, RFC1316)RFC1628, PPC MIB
Network Protocol	TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP, SMTP, DHCP, DNS, TFTP, ARP, ICMP, PPP,etc.
LED Indicators	PW, M-PW, RUN, DEV, PPP, IPP, WEBS, SNMP, EXT, MODEM, LAN 10/ 1 00M link/Active
Input Power	220-240V
Frequency	50Hz	Power Consumption	≤ 12W
Operating Environment	Temperature:0℃~70℃ Humidity:10~85%	Software Upgrade	Network upgrade
Other Configuration	Real time system clock synchronization
Languages	Chinese/English, support OEM other languages.
System Security	Provided filtering mechanism based on IP , and system operation, control
	and management of the user ID and password protection.
Safety Certificate	CE, FCC
