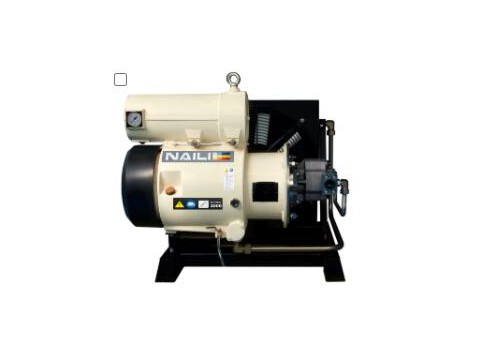

New AH series Hydraulic driven Rotary Vane Compressors Synchronized
Synchronized Hydraulic motors for driven compressor and Independent Oil cooler!
Which is easiest way for Hydraulic Power resource anywhere for the carrier!
Rotary vane compressor NAILI ® It can fixed with Hydraulic driving motor for Agriculture vehicles like tractors for air inflation system;
Also can connect with Diesel engine to put it in ourdoor plant;
They Widely used in Truck with Caterpillar for blowing air and electrical hand tools!
Synchronized Hydraulic Motors driven;
Compact design for the requests of smaller space for air pump in or on the vehicles;
Easier to be controlled;
Easier maintentance;
Working in sort time for bigger air flow needs;
Faster air delivery in out door;
More information you can click here
|
Item |
Model |
AirEnd Parameters |
|
|
|
Hydraulic parameters |
Cooling system |
|||
|
AirEnd Model |
Pressure （bar） |
Rated F.A.D (m3/min) |
Rated Rotary speed（r/min） |
Maximum F.A.D (m3/min) |
Maximum Rotary speed（r/min） |
Rated Output flow ≥（l/min） |
Rated Output pressure ≥（bar） |
|||
|
11 |
AH15L |
NL50D |
8 |
2.71 |
1460 |
5.55 |
3000 |
61.97 |
200 |
Independent cooler |
|
13 |
AH18L |
NL50F |
8 |
3.29 |
1470 |
6.72 |
3000 |
75.30 |
200 |
|
|
15 |
AH22L |
NL50H |
8 |
3.76 |
1470 |
7.71 |
3000 |
84.44 |
200 |
|
|
17 |
AH30L |
NL60D |
8 |
5.6 |
1480 |
xxxx |
xxxx |
121.85 |
|
|
