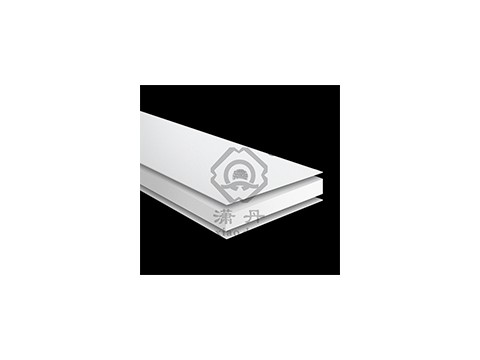

Xiaodan PVC Co-Extrusion Foam Board is a strong and durable rigid foam PVC sheet with a high gloss finish, giving it a high end appeal. The co-extruded glossy surface gives improved hardness and stability over standard foam PVC.
Extra hard, smooth, glossy, premium surface
Suitable for internal and external use
UV and weather stability
Recyclable and Eco friendly
Lightweight and easy to handle
Strong and durable rigid board
Moisture resistant and impermeable
Chemically-resistant and non-corroding
Sound and vibration absorbent
Good fire performance
PVC Co-extrusion Foam Sheet
Size: 1220x2440mm(Other sizes are available to order subject to minimum quantities.)
Thickness: 3mm-25mm
Density: 0.5-0.8g/cm3
Color: White
base Polymer Polyvinyl chloride PVC
Smell Odourless
Water Absorption ≤1%
Water Solubility Insoluble
Tensile Strength ＞18MPa
Elongation at Break ＜20%
Impact Resistance ＞15kj/㎡
Bending Strength ＞16MPa
Shore Hardness 80
Screw Holding 1100N
Vicat Softening Temperature ＞70℃
Service Temperature -20℃ to +60℃
Fire Behavior V-0 (pass)
TVOC ND (passed)
Environment Xiaodan PVC is recyclable and complies with RoHs
