Automotive aftermarket hands free power liftgate power boot kit for ChangAn CS75
Item No.: ChangAn CS75 2014-2020
1. Multiple control methods: Key fob, dashboard button and tailgate switch button
2. Intelligent Speed Control:
3. Anti-pinch
4. Setting height memory

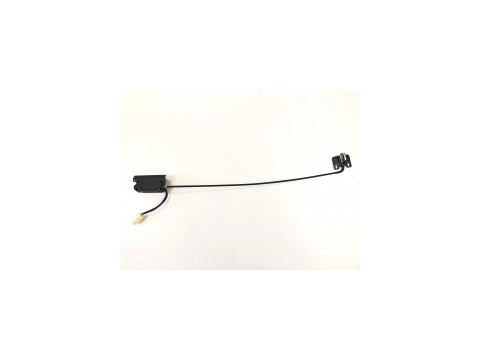

5. Kick sensor (optional)
MOQ: 1 pc
Price: Negotiable
Packaging Details: Neutral Packing / Color Box
Delivery Time: In stock: 1-3 working days ; Out of stock: 5-7 working days
Payment Terms: T/T, PayPal, Western Union, MoneyGram
Supply Ability: 20000 sets / month
What is power tailgate lift kits?
Hands-free power liftgate (Power tailgate lift) is a back-door system, the user of the vehicle controls the liftgate / tailgate opening and closing by pressing a key located on the dashboard or handheld or remoting the key, or by using any object operation in the corresponding region of the liftgate.
Technical Parameters:
|
Type: |
Car Auto Parts / Auto Electronics |
Product Name: |
Power Tailgate Liftgate |
|
Car Model: |
ChangAn CS75 |
Year: |
2014-2020 |
|
Description: |
Double pole with bottom suction |
Installation: |
Plug and Play |
|
Application: |
Car Trunk |
Service: |
in stock / ODM / OEM |
|
Rated Voltage: |
12V |
Operating Voltage: |
9-16V |
|
Working Current: |
5A |
Quiescent Currenty: |
<2mA |
|
Operating Temperature: |
-30℃~80℃ |
Warranty: |
1 year |
Innovation Point:
1. Intelligent Induction: Anti-pinch force setting / Anti-collision force setting. (When the system detects the intention of the car owner of manually open and close the door, power liftgate system will be in the auxiliary state automatically.
2. Intelligent Speed Control: Through intelligent control such as slow start and decelaration, it can ensure that the tailgate runs smoothly and impact of the system is slowed down. At the same time, the lift of the motor is prolonged.
3. Abnormal Scene Processing: Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the electric tailgate opener fails in a special scene, the system will automatically adjust the closing effort.
4. Fault Detection: When the drive circuit is faulty (low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment.
5. Ultimate Energy Saving: Ultra-low quiescent current (Standby Current: 1 mA). It can avoid that the vehicle can not start without power due to long-term parking.
Laboratory Test:
|
Test |
Description |
|
Water-Proof Test |
Perform IPX4 waterproof rating standard, put the poles in the car, dripping for 10 minutes, flusing for many times. |
|
Salt Spray Test |
Place the poles in 5% NACL solution of salt spray for 256 hours, wash the solution with flowing water, rinse with distilled water, stand it for 1-2 hours. Finally check if the pole is rusty. |
|
High Temperature Test |
Double pole load balancing. When a pole fails, the door can be prevented from being deformed. When the tailgate fails in a special scene, the system will automatically adjust the closing effort. |
|
Low Temperature Test |
When the drive circuit is faulty( low-voltage alarm, over-current protection), it will automatically cut off / automatically recover to ensure the safety of vehicles and equipment. |
|
High and Low Temperature |
Ultra-low quiescent current(Standby Current:1 mA). It can avoid that the vehicle can not start without power due to long-term parking. |
