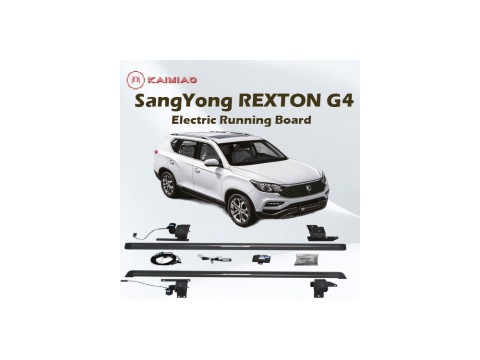

Item No.: E-board SsangYong REXTON-G4 2019+
Combining the ground clearance of the SUV body and the door space, a similar stepped pedal structure is designed. The ground clearance of the pedal is between 130mm-180mm, and the clearance between the pedal and the body threshold is between 50mm-130mm
What is electric running board (E-board)?
Smart electric pedal is a high-end automatic retractable pedal suitable for mid-to-high-end SUV models. It has five intelligent systems such as "smart door sensing system", "intelligent obstacle detection system", and "manual automatic control system". Intelligent new products are designed to provide car owners and passengers with the most practical, comfortable, intelligent and safe VIP-level exclusive enjoyment at the top of the pyramid.
electronic powered side step running board KaiMiao Parameters:
|
Type: |
Auto Body Parts |
Product Name: |
Electric running board (E-board) |
|
Car Model: |
SsangYong REXTON-G4 |
Year: |
2019+ |
|
Color: |
Black, Silver |
Weight: |
38kg - 40kg |
|
Material: |
Aluminum Alloy, PP Plastic, ABS |
Style: |
with / without LED light (optional) |
|
Executive Standard: |
Q/FBJQ01/-2012 |
Working Voltage: |
DC12±1V |
|
Motor Power: |
40W |
Rated Load: |
300kg |
|
Response Time: |
2S |
Working Cycle: |
≥40000 |
|
Working Temperature: |
-35℃ ~ +80℃ |
Motor Failure Rate: |
<3% |
|
Package Size: |
202*36*25.5cm |
Warranty: |
2 years |
Design Concept:
1. In order to facilitate users to get on and off the bus, especially for women and children;
2. After installing electric pedals, the overall model can be more beautiful and coordinated;
3. Compared with the fixed pedal, it will not reduce the passability of the car body.
Pedal profile of smart electric pedal:
1. End Design
The beautiful arc design makes the pedals more closely to the body and the appearance is more beautiful
2. Reinforcement Screw
Alloy die-casting reinforced nuts are safer and stronger. Adopting advanced 4-row inner card nut reinforcement design technology, which effectively guarantees the uniform force of the entire pedal, and the powerful inner card screw fixation makes the pedal never loose.
3. Thickened End
The end of the pedal is made of high-quality ABS engineering materials, which are resistant to cold, high temperature, and impact resistance. Avoid unnecessary scratches on the body and effectively protect safety.
4. Aviation Aluminum
The pedal is made of thick high-quality anti-alumina material, with die-cast aluminum bracket. Strong structure, high-strength aviation aluminum frame. The unilateral load-bearing capacity is as high as 300kg, so there is no need to worry about the load-bearing problem.
