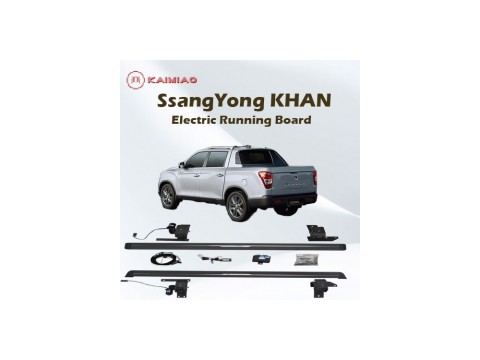

Power smart electric Side Step Running Board LED light blue booth For SsangYong KHAN
Item No.: E-board SsangYong KHAN 2019+
Combining the ground clearance of the SUV body and the door space, a similar stepped pedal structure is designed. The ground clearance of the pedal is between 130mm-180mm, and the clearance between the pedal and the body threshold is between 50mm-130mm
What is electric running board (E-board)?
Smart electric pedal is a high-end automatic retractable pedal suitable for mid-to-high-end SUV models. It has five intelligent systems such as "smart door sensing system", "intelligent obstacle detection system", and "manual automatic control system". Intelligent new products are designed to provide car owners and passengers with the most practical, comfortable, intelligent and safe VIP-level exclusive enjoyment at the top of the pyramid.
Product Parameters:
|
Type: |
Auto Body Parts |
Product Name: |
Electric running board (E-board) |
|
Car Model: |
SsangYong KHAN |
Year: |
2019+ |
|
Color: |
Black, Silver |
Weight: |
38kg - 40kg |
|
Material: |
Aluminum Alloy, PP Plastic, ABS |
Style: |
with / without LED light (optional) |
|
Executive Standard: |
Q/FBJQ01/-2012 |
Working Voltage: |
DC12±1V |
|
Motor Power: |
40W |
Rated Load: |
300kg |
|
Response Time: |
2S |
Working Cycle: |
≥40000 |
|
Working Temperature: |
-35℃ ~ +80℃ |
Motor Failure Rate: |
<3% |
|
Package Size: |
202*36*25.5cm |
Warranty: |
2 years |
FAQ:
Q: Does it need to be stripped wire during installation?
A: For most models, they are directly plugged into the OBD socket. For some models, it needs to be transmitted in other signals (CAN), because the OBD wire has no signal. But you don’t need to strip the wire, just use our clip to connect the wire.
Q: After installation, the pedal does not work. What is the problem and how to do?
A:The power cord is not connected properly. The plug of ECU or OBD are not connected properly or the signal wires are connected incorrectly. Check whether all wiring harness plugs are plugged in correctly, and whether the power cable signal wires are reversed or connected in the wrong place. Pls see the installation manual.
Q: How many kilograms can the pedal bear?
A: 300kg.
Q: After installing the pedal, the gap is not the same as before installation, how to solve it?
A: First check whether the front and rear brackets are on the same level. Or use the U-shaped gasket to adjust the balance of the front and rear brackets. If you have any questions, you can contact our after-sales staff directly.
Q: During the warranty period, can I replace the parts?
A: If the parts are broken during the warranty period, we can replace the new one for you. But you need to send the broken one for us and bear international freight.
Q: There are steps in the parking place. If the door is opened, will the pedal not be blocked? Is it easy to break?
A: The pedal will not come out because our pedal has anti-collision function. The pedal will stop working when it his an obstacle. It is not effect on the life of our pedals.
Q: Does the electric pedal of all models support the installation of front wheel fenders?
A: The electric pedals of all our models will reserve a certain position to install the fenders.
