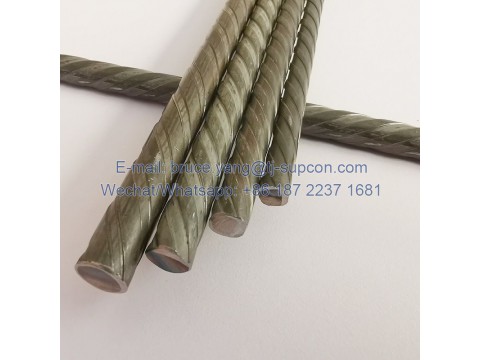

PC Wire Plain Surface Huayongxin
PC Wire (also referred to as Prestressed Concrete Steel Wire) is high tensile, low relaxation steel wire made from high-carbon steel and widely used for prestressed and post-tensioning technology in various shapes of PC structures. It has the following characteristics and advantages:
High tensile strength and low relaxation
More bonding stress between wire and concrete
Stable modulus of elasticity
PRODUCT PROPERTIES
|
Product Name |
|
|
Type of Surface |
Spiral Ribbed, Indented, Plain |
|
Materials |
SWRH82B |
|
Diameter |
4.0mm, 4.8mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 9.0mm |
|
Tensile Strength |
1470Mpa-1770Mpa |
|
Relaxation (%) |
≤2.5 |
|
Elongation (%) |
≥3.5 |
|
Standard |
ASTM A 421, GB/T5223, BS5896, JISG3536, and required standard. |
|
Packing |
Packed in coils (around 700-1300kg/coil). Each coil is strapped by steel bands at 8 places, fully wrapped with anti-rust plastic & PP woven sheet. |
|
Application |
PC wire has the characteristics of high tensile strength and low relaxation. It is widely used in the production of prestressed concrete pole, PHC pile, large railway and highway bridge, building truss, crane beam, industrial and civil precast concrete slab, wall slab, power station and so on. |
|
Our Advantages |
Extensive experience in exporting. Professional team to manage production and control product quality. Equipped with advanced testing facilities and abide by the principle of testing each coil produced. |
