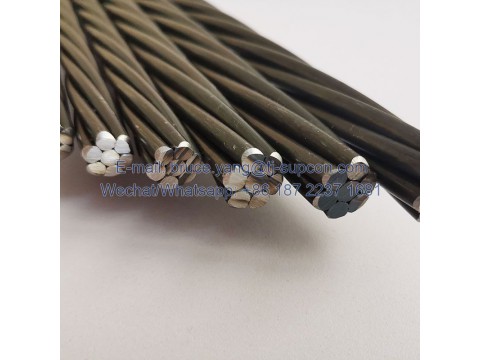

PC Strand (also referred to as Prestressed Steel Strand), is made from the stranding of seven wires of high carbon steel wire rod, and mainly used as auxiliary reinforcing strand for concrete structures. It has the following characteristics and advantages:
High tensile strength and low relaxation
It has high fatigue, fracture load and corrosion resistance
It performs better at high temperatures
Stable modulus of elasticity
High bonding force
Reduce distortion and construction weight
PRODUCT PROPERTIES
|
Product Name |
|
|
Type |
Bonded & Unbonded |
|
Materials |
SWRH82B |
|
Diameter |
1x7 Wire 9.53mm, 12.7mm, 15.24mm |
|
Tensile Strength |
1860Mpa |
|
Relaxation (%) |
≤2.5 |
|
Elongation (%) |
≥3.5 |
|
Standard |
ASTM A 416, GB/T5224-2003, BS5896, JISG3536-88 |
|
Coil Dimension & Weight |
Inside diameter: 800 meters Outside diameter :1400 mm Width :750 mm Weight of coil :2.5 -- 3.2 tons/coil |
|
Packing |
Coiling 8 steel belts → Waterproof, P.P braided plate all wrapped → Fixed wooden pallet → Strapping 8 steel belts |
|
Application |
PC Strand is mainly used in prestressed and post-tension concrete structure, such as post-tension slab, large-span bridges on railway and highway, overhead crane beam, prefabricated bridge girder, multi-storey industrial buildings, stadiums, rock-soil anchoring project, coal mines, etc. |
|
Our Advantages |
Rich export experience. A professional team manages production and controls product quality. Adopt three kinds of anti-rust measures to ensure no rust. The specially designed wooden pallet can avoid the damage to the container when unloading. Equipped with advanced testing equipment, and strictly abide by the production of each roll of the principle of testing. |
