Steel Strand Features:

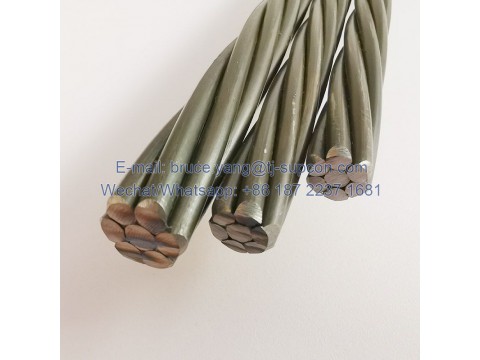

Steel Strand (also referred to as Prestressed Concrete Steel Strand), is made from the stranding of seven wires of high carbon steel wire rod, and mainly used as auxiliary reinforcing strand for concrete structures.
https://www.hyxpcwire.com/product-pc-strand.html
It has the following characteristics and advantages:
High tensile strength, low relaxation
It has high fatigue, fracture load and corrosion resistance
It performs better at high temperatures
Stable modulus of elasticity
The high binding force
Reduce deformation and construction weight
PRODUCT PROPERTIES
Steel Strand Huayongxin Properties
|
Product Name |
Steel Strand |
|
Type |
Bonded & Unbonded |
|
Materials |
SWRH82B |
|
Diameter |
1x7 Wire 9.53mm, 12.7mm, 15.24mm |
|
Tensile Strength |
1860Mpa |
|
Relaxation (%) |
≤2.5 |
|
Elongation (%) |
≥3.5 |
|
Standard |
ASTM A 416, GB/T5224-2003, BS5896, JISG3536-88 |
|
Coil Dimension & Weight |
Inner Diameter: 800m Outer Diameter: 1400mm Width: 750mm Coil Weight: 2.5-3.2MT/Coil |
|
Packing |
Coils wrapped by 8 steel strips → Fully wrapped with waterproof & P.P woven sheet → Fixed with wooden pallet → Strapped at 8 places with steel strips |
|
Properties Application |
Steel Strand Huayongxin is mainly used in prestressed and post-tension concrete structure, such as post-tension slab, large-span bridges on railway and highway, overhead crane beam, prefabricated bridge girder, multi-storey industrial buildings, stadiums, rock-soil anchoring project, coal mines, etc. |
|
HUAYONGXIN Advantages |
Extensive experience in exporting. Professional team to manage production and control product quality. Three rust-preventive measures taken to guarantee no rust caused. Special designed wooden pallet used to avoid any damage to the container during offloading. Equipped with advanced testing facilities and abide by the principle of testing each coil produced. |
