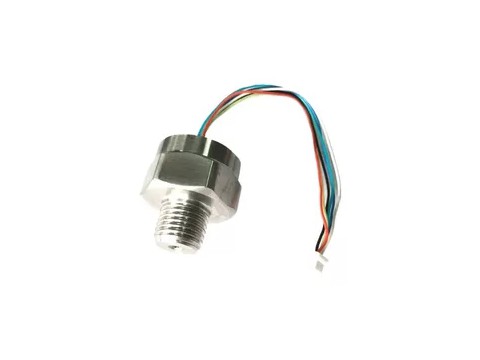

Low Cost IOT Small Pressure Sensor Transducer Spi I2c 0.2-2.9V 4~20mA, Low Consumption
WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have
entered big quantity production stage. For different applications and installation methods, we offer
OEM, ODM and customization services.
Features :
1. Temperature range: -20 to 85ºC;
2. Wide operation temperature range -40~125ºC;
3. High performance ceramic capacitive pressure sensor;
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;
5. Small dimensions, dimension customizble;
6. Optional packard, M12, Small Hirschman connectors;
7. OEM, ODM, customization service available;
Detailed Technical Info:
| IOT Mini Pressure Sensor | ||||
| Pressure range | 0~15MPa | |||
| Pressure type | Gauge, Absolute, Sealing gauge | |||
| Overpressure | 300%F.S. (≤70kPa) 200%F.S.(≤25MPa) | |||
| Output signals | 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA | |||
| Accuracy | ±0.5%FS, ±1%FS | |||
| Compensation Temp. | -20~70℃ | |||
| Operation Temp. | -40~125℃ | |||
| Storage Temp. | -40~125℃ | |||
| Zero Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Full Scale Temp. Drift | ±1.5%FS Max (-20~85℃) | |||
| Pressure Connection | G1/4, 7/16-SAE, NPT, and other outputs | |||
| Ingress Protection | IP67 | |||
| Housing | SS316, SS304 | |||
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
