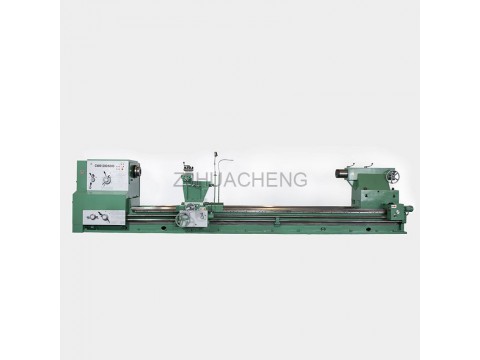

Huasheng-Unniversal Heavy Duty Lathe
This machine is a universal lathe, suitable for high speed steel and hard alloy cutter to process axial parts, cylinder type and disk parts of different materials, turning excircle, section, slot, boring holes and inner cone. Heavy duty lathe machine also turning various threads.
Spindle adopts three supporting structure, the whole lathe bed form the box body,it make the bed has high rigidity.Lathe is equipped with a separate pump, forced lubrication, carrige box, the tool post, saddle, tailstock can fast moving. Huasheng-heavy duty lathe has high rigidity, high efficiency, safe and reliable, convenient operation and attractive appearance etc.
heavy duty lathe manufacturers:Zhenjiang Huasheng Intelligent Technology Co., Ltd
GEAR BOX-THREADS & FEEDS
Metric threads range
44 1-120mm
Inch threads range
31 1/4-24 T/I
Moudle threads range
45 0.5-60mm
Diametral threads range
38 1/2-56DP
Longitudinal feeds range
56 0.1-12mm
Cross feed range
56 0.05-6mm
Rapid feed:long/cross
3400mm/min,1700mm/min
