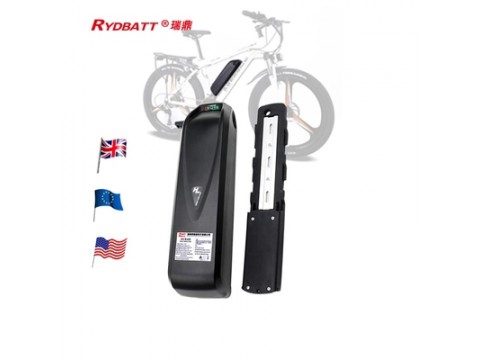

10Ah 36v Ebike Battery Pack Lithium Ion Battery Packs For Electric Vehicles
Quick Details
Product Name: Lithium ion Battery 36V 10Ah for scooter
Voltage:36V,
Capacity:10Ah
Cell: 18650 Cells
Cycle life:300-500 times
Case dimension: 465*92.4*51.1mm(Max)
Warranty: 1 Year/12months
Supply Ability
Supply Ability: 50000 Pieces per Month
Lead time:
| Quantity | 1 | >200 |
| Est. Time(days) | 15 | 35 |
Product Dimension and standard
| Specification |
48V10.4Ah |
| Inner size | / |
| Cells | 18650 or soft-pack battery |
| Cell Franme | / |
| Electric Qty Display | / |
| onoff Button | / |
|
Charge Connector |
DC2.1 |
| Fuse Holder | 20a |
| Discharge Connector | 5PIN |
| Lock | Mechanical lock |
| Shell material |
Die-casting aluminum / PC+ABS |
|
Name |
Maximum Cells |
Connection Type |
|
Capacity |
|
|
RD-EB-2107 |
52 |
13s4p |
8.8AH / 2200mAh |
10.4Ah / 2600mAh |
13.6Ah / 3400mAh |
|
NO |
Battery type |
(mm )Dimensions L*W*H |
(mm)Lead exposure L |
Terminal head direction |
Immersion tin size
|
| 1 |
Li-ion Cylindrical |
434(+/-1)*103(+/-0.5)*49(+/-0.5) |
Product Specification
|
No. |
content |
Testing method |
Remark |
| 1 |
Charge cut-off voltage |
54.6V | |
| 2 |
Discharge cut-off voltage |
35.1V | |
| 3 |
Standard charge |
Under the condition of the ambient temperature of 25±2℃,Charge the battery at constant current of 0.2C to reach 54.6V. Then charge the battery at constant 54.6V voltage until the charging current decreasing to 0.02C. | |
| 4 |
Standard discharge |
After the standard charging,rest for 1 hour then discharge to 35.1V@0.2C. |
|
| 5 | Shipments voltage | 45.5-46.8V | ≤30 % |
| 6 | Maximum Charge Current | ≤3A | |
| 7 |
Maximum continuous working current |
≤18A | |
| 8 |
Rated capacity |
Typical capacity:10.4Ah Minimum capacity:10.2Ah-5% |
standard discharge after standard charge |
|
9 |
Operation temperature range |
C:10~45℃ |
60±25%R.H |
| D:-20~60℃ | |||
| 10 |
Storage temperature |
≤1 month: -20 ~ 45℃ |
60±25%R.H Best 10~25℃ for long-time storage |
|
≤3 months: -10 ~ 30℃ |
|||
|
≤1 year: 0 ~ 30℃ |
|||
| 11 |
Impedance |
<200mΩ | |
| 12 |
Weight |
Approx:≈3.1Kg |
