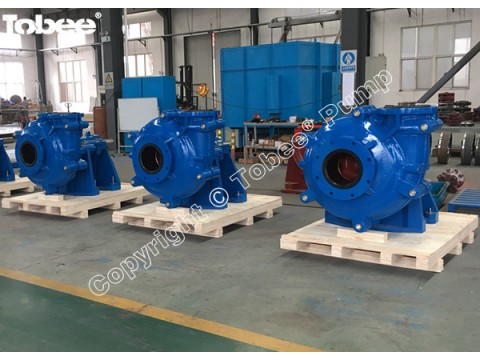

Tobee® 8/6E-AHR Rubber Lined Slurry Pump is the standard heavy duty slurry pumps which designed for the continuous pumping of highly abrasive, high density slurries with minimal maintenance requirements, It maintains high efficiencies over the wear life of its components. 8/6 slurry pump typically used in process plant transfers, wet waste processes, recycling-washing plants, sand plant duties, heavy minerals processing, mineral recovery and chemical process plant.
DC Type: The output shaft of a motor is directly connected to the input shaft of a pump via a pump coupler. This type of connection is suitable for applications where the speed of the slurry pump is the same as that of
the motor.
CV Type: The pump is driven by a belt connected to the crankshaft of the engine. This way of connection allows for saving space, easy installation, and fast adjustment of pumping speed. The motor is fixed to the
motor support frame which is located on the bearing support above the slurry pump.
ZV Type: Another type of belt drive that allows easy adjustment of pumping speed. The motor is directly fixed to the bearing support. This way of installation is suitable for motors with larger horsepower than is possible with CV type of installation. Due to the installation of motor onto the bearing support, this method helps save installation space.
CR Type: This type of belt drive makes it easier to adjust pumping speed. The installation allows both the motor and slurry pump to be fixed to the ground. The motor is installed to the side of the pump. This installation method is suitable for large-power motors.
