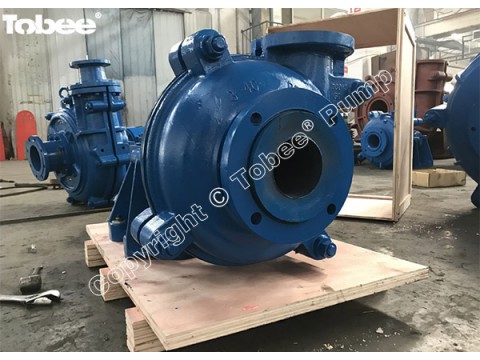

Tobee® 4/3C-AHR Rubber lined Slurry Pump is widely used for transporting slurry with strong corrosion and high concentration for many industries such as metallurgy, mine, coal, electric power, building materials etc. The wet parts is 100% interchangeable with 4/3C-AH metal lined slurry pump.
Design Features:
√ Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.
√ Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
√ Casing: Casing halves of cast or ductile iron provide high operating pressure capabilities.
√ Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
√ Throatbush: Wear is reduced and maintenance simplified by the use of tapered.
Tobee® Rubber Lined Slurry Pumps Applications:
Rubber lined slurry pumps are widely used for wet crushers, SAG mill discharge, ball mill discharge, rod mill discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, phosphoric acid, coal, flotation, sugar beets, process chemical, pulp and paper, FGD, waste water etc.
Note:
* Tobee® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names, numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* Tobee® 4/3 C AHR rubber lined slurry pumps and parts are only interchangeable with Warman® 4/3 C AHR rubber lined slurry pumps and parts.
* This document is the property of Tobee® Pump and can be neither reproduced nor disclosed to a third party without a written authorization
