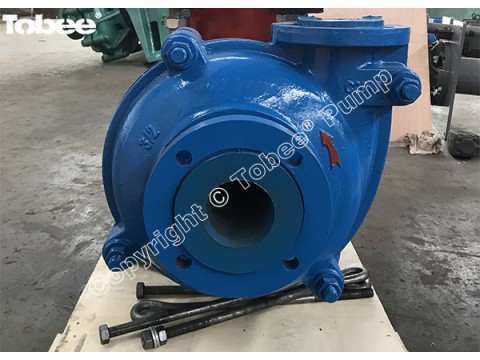

Tobee®3/2C-AH Rubber Lined Slurry Pump is designed for the continuous pumping of high abrasive, high density slurries with minimal maintenance requirements. It will maintain high efficiency over the wear life of its components. The rubber lined slurry pumps feature casings which are radially split into two halves. Minimum casing bolts reduce maintenance and minimise downtime.
Design Features:
√ High-efficiency design with very low power costs
√ Proven hydraulics for slurry service, Extended parts wear life Thick bolt-in liners
√ Positive assembly in casing for extended life
√ Large liners reinforced with a fiberglass shell Resist liner collapse under adverse conditions
√ Large-diameter closed impeller Lower speeds and extended wear life
√ Replaceable suction wear plate available on 6 inch (150 mm) and larger rubber slurry pumps, Provides reduced downtime and lower replacement cost
√ Axially adjustable bearing assembly Maintains peak operating efficiency and life
√ Short, rigid shaft and heavy-duty bearings Low deflections and reliable service
√ Packed gland option or mechanical seal Standard, low or no dilution arrangements
√ Precision-machined cast iron frame Sturdy, vibration-free support
√ Five discharge positions available Suitable for most piping arrangements
Tobee® Rubber Lined Slurry Pumps Sealing Arrangement:
Packing Seal
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.
