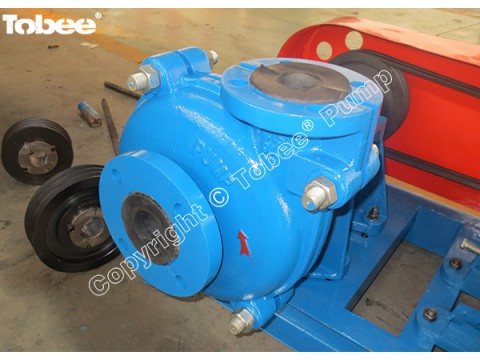

Tobee® 1.5/1B-AHR Rubber Lined Slurry Pump is the standard heavy duty slurry pumps which designed with rubber lined. It is more suitable in delivering strong corrosive or abrasive slurries of small particle size without sharp edges. The rubber lined slurry pumps typically used in process plant transfers, corrosive and caustic wet waste, recycling-washing plants, minerals processing, mineral recovery and chemical process plant.
Design Features:
√ Cantilever, horizontal centrifugal rubber lined slurry pump
√ Wet end –resistance and corrosive resistance rubber lined wear parts
√ maximum working pressure is 3.6Mpa.
√ Expeller seal, mechanical seal and packing seal are available.
√ The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit installations and applications.
√ To adapt to convey heavy abrasion, high concentration dredge, slurry pump's body is used double-shell construction, in other words, being made of inside lining and outside casing.
Tobee® Rubber Lined Slurry Pumps Sealing Arrangement:
Packing Seal
As one of the most commonly used seals for rotating shafts, the packing seal can come with low-flush or full flush arrangement which uses flushing water to prevent media from escaping the pump housing. This kind of seal is suitable for use under all pumping conditions. In situations where corrosive solids or high temperature might be encountered, Teflon or aramid fiber is used as the packing material for the gland. For high abrasion conditions, a ceramic shaft sleeve is available.
Centrifugal Seal - Expeller
The combination of impeller and expeller creates the pressure needed to seal against leakage. Together with the gland seal or lip seal which is used as the shut-down seal, this type of seal can handle sealing requirements for applications where full-flush gland seal is impractical due to lack of water on the site, or sealing water is allowed to enter inside the pumping chamber to dilute the slurry.
Mechanical Seal
AHR heavy duty slurry pump utilizes a leak-proof mechanical seal design which allows easy installation and replacement. Other types of mechanical seal are among options to suit the slurry pump for various pumping applications.
We also utilize special ceramic and alloys of high strength and hardness on parts that are subjected to friction. Unique design of and seamless fit between the mechanical seal and seal chamber provides excellent resistance to abrasion and shock that ensures its effectiveness under the toughest conditions.
