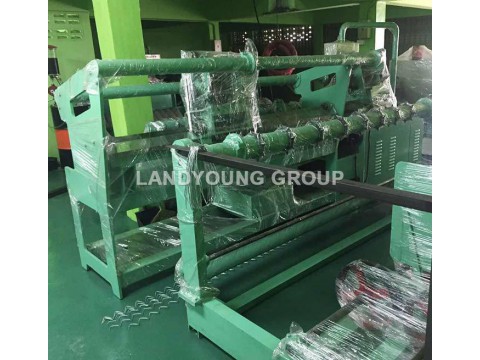

Chain link Fence Machine LANDYOUNG
Introduction:
The automatic chain link fence machine is welded of high-quality steel and channel steel with a PLC control system, so the frame of the machine will be more stable and stronger, and the height of the frame can be adjustable.Easy operation and high-speed efficiency.We can design the machine according to your wire diameter, mesh hole size, mesh width, and voltage.
Advantages:
Easy to operate
Low failure rate
High efficiency
Special specification models can be customized according to customer requirements.
|
Automatic chain link fence machine |
|||
|
|
2m chain link fence machine |
3m chain link fence machine |
4m chain link fence machine |
|
width |
2m |
3m |
4m |
|
wire diameter |
1.8mm--4mm |
||
|
mesh size |
25mm--85mm |
||
|
material |
galvanized wire; black annealed iron wire; PVC-coated iron wire ; |
||
|
The output per minute |
f the mesh is 50 × 50mm, width: 2m, the output will be: 1m/2min. |
||
|
Total power |
5 machines; totally 10KW |
||
|
Size(L*W*H) |
Main machine: 4800*1200*1850mmAuxiliary machine: 3000*1700*1120mm |
|
Main machine: 6800*1200*1850mmAuxiliary machine: 5000*1700*1120mm |
|
weight |
3T |
|
4T |
|
type |
fully automatic |
||
|
contents |
One main machine; one auxiliary machine; Two poles and trays for holding the wire; two bases of trays; |
||
