Scrap printed circuit board separator machine is a machine which specially handle E waste. After the separating, the precious metal and resin fiber can be get from printed circuit board.

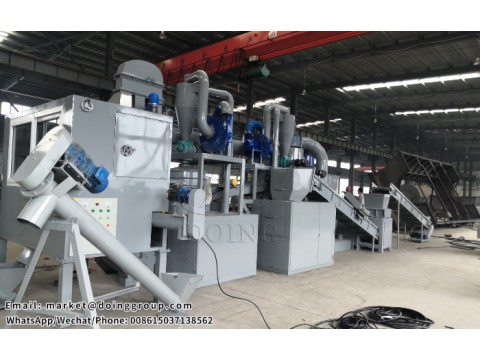

Scrap printed circuit board separator machine
The working process of scrap printed circuit board separator machine is as following:
The fists step of scrap printed circuit board separator machine is put the boards on the PCB dismantling machine. And then the electronic components will fall down from the boards.
The second step of scrap printed circuit board separator machine is shredding or crushing. The whole board is too big to hard to deal with. This step is necessary and important. The board will change from board into powder.
Process of scrap printed circuit board separator machine
The third step is sieving by the Eddy-vibrating screen. Because board will be crushed in different size, and we need the seam size. If the board is too big, it will be crushed again until the size can be accepted. Though this step we can get the seam size powder.
The last and important step is separated though air separation and electrostatic separation. The seam size powder will be separated in the physical way, and the metals and resin & fiber can be separated. The recovery rate can achieve at more than 99%.
Scrap printed circuit board separator machine
The whole process use pulse dust system, and it is dry and totally environment friendly. There is no water pollution, no fire, no chemical, no secondary waste. With PLC control, the operation will become fully automatic and easy to operate. And scrap printed circuit board separator machine is designed with integrated type compact structure with could save land occupy size and easy to install.
