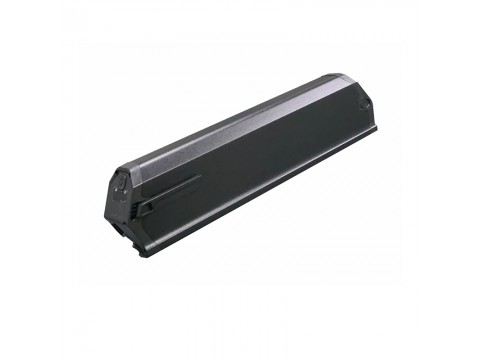

Reention dorado e bike battery pack 48v 17.5ah 14.5ah 17ah 48v reention dorado 48v battery pack specification:
|
Model |
Junda-J109 |
|
Chemistry |
LiNiCoMnO2 |
|
Nominal Voltage |
48V |
|
Nominal Capacity |
10.4ah 11.6ah 13.6ah 13ah 14.5ah 17ah |
|
Weight |
Approx 3.5KG/5.5Kg |
|
Outer case style |
Inner battery case Dorado Mini L440 30pcs or L505 40pcs 18650 cell Dorado Pro L505 50pcs or L440 40pcs 18650 cell Dorado plus L440 52cpcs or L505 65pcs 18650 cell Dorado Max L440 64pcs or L505 80pcs 18650 cell |
|
Standard Charge |
Constant Current 0.2C, Constant Voltage 54.6V 100mA Cut-off |
|
Fast Charge |
Constant Current 0.5CA, Constant Voltage 54.6V 100mA Cut-off |
|
Standard Discharge |
Constant Current 0.2C/End Voltage 39V |
|
Cycle Life |
500 times with DOD80% |
|
Continuous Discharge Current |
17A or customized |
|
Peak discharge current |
51A or customized |
|
BMS function |
Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance |
