Extruder Screen Packs: Spot Welded Packs and framed, with woven mesh, perforated screen, sintered mesh and etched Mesh plate As filter media layers

Types: Multi-layer filter media edge covered disc, welded disc with rims.
The spot-welded wire mesh filter packs have an Aluminium or Stainless steel rim around discs offering greater rigidity and strength compared with mesh discs with no rims or frames.

Disc Sizes: any size available according to requirement.

Material: Stainless steel 304,316,316L, or black wire cloth, etc.

Mesh types: Woven mesh, dutch mesh, perforated mesh, sintered mesh, etched mesh sheet,etc.
Layers: 2, 3, 4, 5 layers

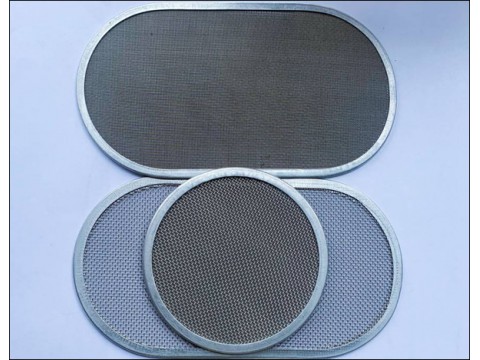

Extruder screen packs shapes:
Round, rectangle, leaf, oval and other shapes.

Multilayer Extruder Screen

Multilayer Extruder Screen is used for fine and thin level of extrusion to prevent the mixing of foreign particles. The Filter Screen Packs help in making extrusion more clear and clean. We offer metal screen packs available in standard and customized sizes as per your specifications. Multilayer mesh screen are welded with or without selvage.

Materials: Plain steel wire mesh and stainless stee wire mesh can be welded together.

Extruder screen is applied in the following fields:
Petrochemical industry
•Plastic and Rubber industry
•Chemical industry
•Aeronautic industries
•Water treatment plant
•Food processing industries.

framed Multilayer Screen Packs

Extruder Screen Filter, Two Layers ( Backing Mesh and Filter Mesh), for Extruder Machine

Screen filter mesh for extruder machine:
Screen filter mesh size 2.5" 40, for backing
Screen filter mesh size 2.5" 300 for filtration
Mesh type: Woven wire

49-50mm Round Shape Wire Multilayer Extruder Screen Packs
Multilayer Extruder Screen Packs: 49-50mm, 0.1mm + 1mm mesh screen, and 0.3mm + 1mm screen, double layer.
Mesh type: Woven wire

Multi (4) Layer Stainless Steel Round Screen Extruder Filter Disc Mesh for Extrusion Machines
Mesh disc filter screen for extruder with specification below:
Material filter: stainless steel 304
4 layers filter mesh:
20/80/100/60 stainless steel mesh
40/60/80/100 stainless steel mesh
Material frame: aluminum
Dia. 200 mm
Mesh type: Woven wire

Stainless Steel Extruder Filter Mesh for Plastic Pellet Machine
Filtering Screen, 300mm, Stainless Steel, 50 mesh x 0.2mm wire
8" PVC Pipe - Extruder Screen
Extruder screen with dimension of O.D.:  7.8", Mesh size: 8X8 (0.0937" openings), and 0.04" wire diameters
Mesh type: Woven woven

50mm or 75mm round shape black wire cloth multilayer extruder screen packs

Multilayer Circular Extruder Screens
100mm Round shape
2 layers:
mesh 40, wire diam: 0.254 mm, aperture size: 0.38 mm
mesh 160, wire diam: 0.0635 mm, aperture size: 0.0965 mm
Mesh type: Woven wire

Mesh Packs with Aluminum frames

Filter media layers:
Mesh 20 x 0.40 mm diameter, ss 304
Mesh 40 x 0.26 mm diameter, ss 304
Filter mesh type: Woven wire

Multilayer Circular Screen Packs：

Material: Stainless steel wire (304,316 ,316L) low carbon iron wire, copper wire (brass wire ,pure copper wire ) , nickel wire, Nicr alloy wire, inconel wire, monel wire ,titanium wire.
Wire diameter:0.2-2.5mm
Mesh:20-150
Mesh type: Woven wire
Ring: Aluminum ring
Features:Acid resistant,alkali resistant,heart resistant,corrosion resistant.



Spot Welded Multilayer Extruder Filter Screen

3-layer Stainless Steel (AISI304) Extruder Screen

Stainless steel mesh extruder filter pack: 18/32/60, Disc diameter 53mm. Circular. Spot welded together
Screen diameter 61mm, 18 mesh, 32 mesh, 60 mesh
Screen diameter 71mm: 18 mesh, 32 mesh, 60 mesh
Screen diameter 106mm: 18 mesh, 32 mesh, 60 mesh
Mesh type:Woven wire

Spot Weldeded Φ2X6 AISI 304 Extruder Screen Packs, 80/40/20

Disc diameter: 104mm +/- 0.2mm
Three layers wire mesh:
Filter wire mesh 80 mesh x wire 0.12
Material: AISI 304
40 mesh x wire 0.25mm
Material: AISI 304
20 mesh x wire 0.5mm
Material: AISI 304

Special shape

Screen diameter 53mm: 40mesh, 60mesh, 80mesh

SS Annulus Pack Screen with Spot Welded Stainless Steel Rims

Multilayer Extruder Screen
Specs: circular, 10.625" diameter, 20-40-60 mesh layers 304SS layers, 0.020" Aluminum frame 1100-O, 0.250" lip.

Extruder Screen Packs
Screen packs for extruders:
150 mesh
200 mesh
Diameter of screen 3.25”

Sintered Stainless Steel Extruder Screen, with Sintered Mesh as Filter Layer

Stainless steel extruder screen for Liquid Filtration
Specifications:
50mm diameter
Filter edge thickness: 1.5 to 3 mm
100 mesh screen filter in center
Filter layer: Sintered mesh sheet



Mesh Screens ( Rolls and Cut Discs) for Extruder Equipments

Mesh fabrics for making of multilayer extruder screen packs.

25mm diameter Screen mesh for Extruder Equipment, Quality BS410/ISO3310
Screen Mesh, diameter 25mm, 40 Mesh, Stainless Steel
Screen Mesh, diameter 25mm, 60 Mesh, Stainless Steel
Screen Mesh, diameter 25mm, 100 Mesh, Stainless Steel
Screen Mesh, diameter 25mm, 200 Mesh, Stainless Steel.

Extruder Screen Mesh
400 Mesh (165 x 800) Screen x 1.125” Diameter
70 Mesh Screen x 1.125” Diameter (0065.304SS )
500 Mesh Screen x 1.125” Diameter (165 X 1400 TDW SS)
325 Mesh Screen x 1.125” Diameter (1-⅛” 325.0014SS)

Extruder Mesh Screens, Dutch Weave
4 9/16 - 12 x 64 Stainless Steel MESH SCREEN (60 mesh) - Dutch Weave
3 9/16-14 x100 Stainless Steel MESH SCREEN (80) mesh -Dutch Weave
4 9/16 - 14 x 100 Stainless Steel MESH SCREEN (80 mesh) -DutchWeave

Screens Net for Polymer Extruders
Mesh 80
Mesh 120
Mesh 480

Stainless Steel Plain Dutch Weave Wire Mesh for Plastic Recycling factory
Plastic washing line with extruders
Filters, 20 x 0.50
Filters, 12 mesh x64mesh
Mesh disc cut with a diameter of 350mm

Extruder Mesh Filters
Cut mesh disc for filter specifications: Mesh 60, disc diameter 30cm
For spot welded screen packs processing
