Product Description

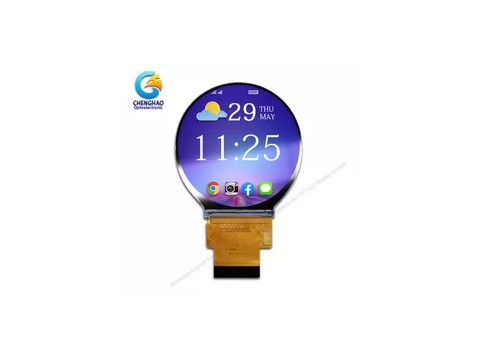

2.1 Open frame Circular Tft Lcd Display Module All Viewing Direction 3line Spi + Rgb Multi-Interface Screen Panel
| Module mode | CH210WV01A |
| Module Size/Inch | 2.1 |
| Resolution | 480*480 Pixel |
| FPC Interface | 3line SPI + RGB |
| Viewing angle | All |
| Module Sharp Type | Round |
| Luminace | Nit |
| Connection | Connector |
| Pin Number | 40 |
Company Strenghth:
1> ISO9001 certificated, Factory Direct Supplied
2> RoHS Compliant, Lead Free, Reach Compliant
3> Competitive Price and Short Lead-time
4> Professional Team with Rich Experiences in Design/Mfg/Quality Control
5> Small MOQ Support & Fast Response to Customers
6> Long Product Life Time
##ChengHao Display model CH210WV01A is a color active matrix thin film transistor (TFT) liquid
crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is
composed of a TFT LCD panel, a driving IC, a high brightness back-light, a capacitive touch
panel and FPC.
##This TFT LCD has a 2.1 (Round shape) inch diagonally measured active display area with 480*480
resolution .This lcd module does not have a touch panel, but the touch panel can be installed
according to customer needs
##The driving IC is the ST7701S and can display 65K colors by 3line SPI or R.G.B. signal input. The
driver is mounted on the glass and the interconnection via FPC including components to drive the
display module. Support RGB interface.
##In addition, FPC can also be customized according to customer requirements, such as modifying
back-light and CTP structure, interface definition, etc.
##RoHS Compliance & Halogen Free.
