Glass Bead Abrasive For Surface Preparation (30 grit, 60 grit, 80 grit, 100grit)

Glass Bead Abrasive For Surface Preparation (30 grit, 60 grit, 80 grit, 100grit)

Glass beads are a unique feature of abrasives used in cleaning or metal surface strengthening processes, primarily for sandblasting equipment. The raw material of the glass beads is glass sand, which is fused into a spherical shape by high temperature suspension and then annealed to eliminate internal stress and prevent breakage. This transparent, clear spherical structure product does not have particles embedded in the workpiece during use, contaminating the workpiece or causing other damage. Using different sizes of abrasives and different operating parameters, the glass beads will have a special decorative effect by selective localized controlled blasting on the surface of the workpiece.

Overview Glass Bead Abrasive (30 grit, 60 grit, 80 grit, 100grit)

The excellent properties of the glass beads make it suitable for use in cleaning or deburring workpieces with strict deviations without damaging the surface of the workpiece. Moreover, the inherent strength of the glass beads makes it suitable for use in equipment capable of circulating abrasives.

Glass beads are widely used to treat workpiece surfaces with residual tension or under cyclic pressure to produce compressive stress layers for surface strengthening purposes. Use glass beads to strengthen the surface of the workpiece, reducing potential hazards such as surface erosion or surface fatigue.



The Advantage of Blasting Glass Beads For Surface Preparation



Surface treatment with glass beads is very economical and accurate.



The chemical nature of the glass beads is inert and non-toxic. During use, no iron or other harmful substances remain on the surface of the workpiece, nor will it adversely affect the surrounding environment.



With rich producing experience, the glass beads quality can control by adjusting the furnace temperature, the induced draft fan, and cooling water, so our product roundness is very high, and the glass beads appearance is clear without bubble.



We worked with the glass factory, and choose the best raw material, it will give a promise on quality from resources.



We have 24 hours quality control system, to make sure each lot of glass beads quality is the same





Factory advantage, we can give the best competitive price

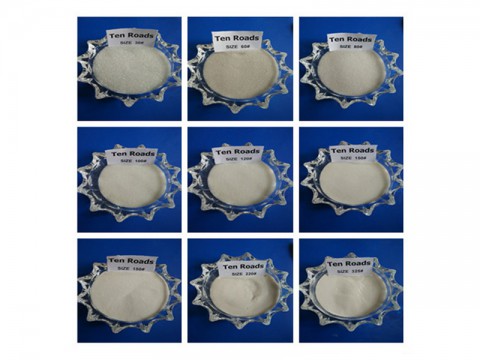

The Specification of Glass Bead Abrasive Media

Type	Size(μm)	Mesh
#30	850-425	20-40
#60	600-300	30-50
#80	425-212	40-70
#100	212-150	70-100
#120	212-150	70-100
#150	150-106	100-150
#180	106-75	150-200
#220	106-53	150-270
#280	75-45	200-325
#320	325max	/

Glass bead 80 grit abrasive media is very popular!

The Application of Blasting Glass Beads  (30 grit, 60 grit, 80 grit, 100grit)



Matt surface treatment of stainless steel products (such as stainless steel sinks, cabinets, cookers, metal necessities, matte treatment)spherical glass beads for airfield markings



Cleaning of various abrasive tools, removing tensile stress of various parts and increasing fatigue resistance. Extend product life and improve resistance to stress and corrosion. (such as aircraft engine turbines, blades, shafts, landing gear, various spring gear hydraulic parts, etc.)



Integrated circuit plates; plastic sealing on the tube before tin cleaning and deburring



Medical machinery, paper machinery, textile Shot peening and finishing of machinery and all kinds of hardware products; surface treatment of various non-ferrous metal pipe fittings and precision castings, deburring, removing residue



Rust removal inside and outside of various types of parts, in addition to oxides, polishing to rough, Clearing stress.



Surface treatment of various jewelry watches, lamps, cosmetic bottles, and eyeglass accessories.
