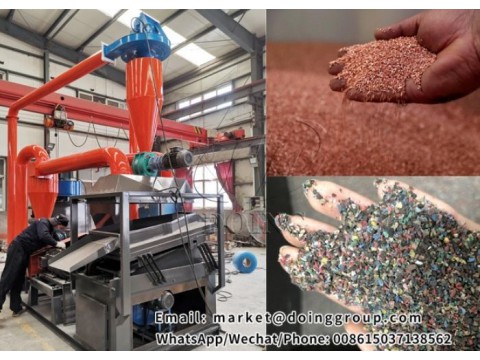

Copper wire granulator, also called copper wire recycle machine, replaces the traditional way, which can get pure copper, and no secondary pollution to the environment.
The separation process of copper wire granulator is:
1.Shredding the cable wires firstly-using a shredder to shred the waste cable wire into small pieces with the length of 2-5cm;
2.Crushing the small pieces secondly-using one hammer crusher to crush the pieces into small particles;
3.Separating the copper at first through the air separation-by the different gravity of copper and plastic, the separation rate is 97%-98%;
4.Separating the copper and plastic through the electrostatic separation-by the different electrical property of them. After this separation, the purity of copper and plastic can reach to 99%.
Through the complete separated method, our copper wire granulator with 99.9%-100% separation rate could make sure there is no copper in the plastic and there is no plastic in the copper.
The follow is some advantage details of copper wire granulator:
1.The combine of shredding and crushing make sure the scrap wires could be granulated enough to improve the subsequent screening rate and separation rate.
2.The combine of air separation and electrostatic separation make sure the 99.9%-100% separate rate of metal recovery.
3.There is dust removal collector equipped in the process line to make sure there isn’t dust fly around the machine and make the true environmental.
4.The 1-2 operators is enough by using the PLC control system to reduce the manpower and the cost.
