Black annealed binding wire BWG19 for construction, soft annealed black wire gauge #14, 16 & 18 also popular for binding in construction.
Binding wire of black annealed material offer better tensile strength and easier tying compared with galvanized wires. Black annealed iron binding wire is also called black tying wire. The annealed black binding / tying wire features excellent flexibility and softness going through the process of oxygen free annealing. Standard follows: DIN, GB, ISO, JIS, BA, ANSI, SGS, etc.
Forms of Supply
Black annealed tying wire comes in the following forms:
Specification List Comparison of Wire Gauge of Different Standards Binding Wire

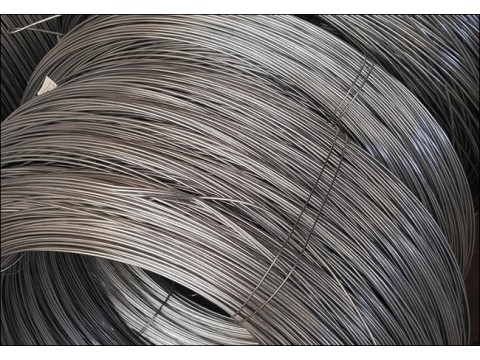

Soft Quality Black Annealed Wire in Coils for Construction Binding Uses
Firstlin exports constructional binding wire in black, soft, annealed surface treatment according to DIN 59110 and other international standards. Used in binding and tieing, mainly manual tying and twisting. Normal tensile strength ranges from 350 to 550 N/mm2. Custom specifications available. Small coils (for manual tying mainly) and big coils (designed for machine binding) are both supplied to meet specific work conditions.
Material: Steel wire (prime / first choice).
Black Annealed U Type Wire Ties ( Wire Length: 20-60cm)
Single and Double Loop Bale Ties in Mild Steel, Soft Annealed Quality
Loop ties and twisted ties are binding wire for quick tying and packing. Soft annealed black single and double looped binding wire is used in cotton baling, daily packing and construction binding. It is easy to operate simply and directly and using of it can enhance the working efficiency, reduce pollution. PVC coating surface treatment available.
Big Coil Black Iron Baling Wire on Carriers for Automatic Horizontal Balers
Firstlin supplies big coils annealed binding wire of maximum 2203LB per coil. With advanced wire rewinding machine to layout the small coil wire and winding it again into big coils with different inner diameter. Annealed big coil binding wire is mainly used as automatic binding industrial bale tie wire, etc.
Cut to Length Wire Ties (1.10mm, 2.0mm, 2.50mm)
Soft Annealed Black Iron Binding Wire in Coils, Cut Length, U Type, Twisted Single and Double Loop
Small coil wire;
Big coil wire;
Straight cut wire;
U type wire;
Quick link looped wire.
Gauge No
ASWG (America standard Wire gauge )
BWG (Birmingham wire Gauge
ISWG (Imperial standard wire gauge)
8#
4.114mm
4.191mm
4.064mm
9#
3.766mm
3.759mm
3.658mm
10#
3.429mm
3.403mm
3.251mm
11#
3.06mm
3.048mm
2.946mm
12#
2.679mm
2.768mm
2.642mm
13#
2.324mm
2.413mm
2.337mm
14#
2.032mm
2.108mm
2.032mm
15#
1.829mm
1.829mm
1.829mm
16#
1.578mm
1.651mm
1.626mm
17#
1.371mm
1.473mm
1.422mm
18#
1.206mm
1.244mm
1.219mm
19#
1.041mm
1.066mm
1.016mm
20#
0.883mm
0.883mm
0.883mm
21#
0.806mm
0.813mm
0.813mm
22#
0.726mm
0.711mm
0.711mm
Constructional Black Rebar Tying Wire supplied popularly in 21BWG, 16BWG, 18Guage and 3.65mm, 3.15mm wire diamter.
Processed from fine low carbon black wire for daily bundling and rebar tying.
Material: Low carbom Q235/Q195
Wire Diameter: 21Ga-14Ga BWG
Length: 20-60cm
U type soft iron wire ties for building material bundling up.
Cotton Bale Binding Wire of Double Loop Tying Pattern, in 21 Gauge to 14 Gauge BWG with a length ranges of 4 to 16 inch
Wire Diameter: 0.4-4.0mm
Length 5cm-500cm, custom sizes acceptable.
Soft Annealed Black Wire Straightened and Cut to Sizes, used for securing trees, vines and creepers, used as plant supports and trellises support
