Introduction

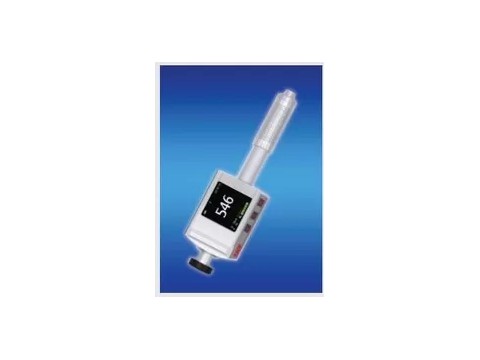

HARTIP 4100 is an advanced state-of-the-art palm sized metal hardness tester with many new features. It still used our patent technology which makes H4100 to have extraor-dinary accuracy:+/-2 HL (or 0.3% @HL800) with high contrast colour TFT display and durable metal housing. It has a moving bar-graph display which can evaluate the workpiece upon deviation valuI by different colour for easy visual distinguish. HARTIP4100 can down load measuring data to PC and printout to micro-printer by USB port and wirelessly with internal wireless module. The battery can be charged Test block D 1 simply frofunction.
Equipped with impact device E (diamond ball tip), HARTIP4100E is Cleaning brush 1 especially suitable for the hardness material after heat treatment or the situation requiring a large number of tests.
Specifications
| Model | SADT HARTIP 4100E |
| Princlple | Leeb hardness measurement |
| Accuracy/Repeatability | ±0.3% @ HL=800/±2HL |
| Display | High contrast color TFT320×320 |
| Hardness scale | HL/HRC/HRB/HB/HV/HS/HRA/ob |
| Measuring range |
HL100-960/HRC0.6-78/HRB3-140/HB24-1140/ HV24-1360/HS3-120/HRA1-88/ob(rm)24-3800N/mm2 |
| Probe | E(diamond bail tip) |
| Materials and conversion curves | 11 common metal materials, 75 curves |
| Memory | 30 files,100 data for each file, can be saved and re-readable |
| Statistics function | Average / Max./Min./S.value |
| Re-callbration | Coincldent/ Independent |
| Indicator | Low battery |
| Language | English, Simplified Chinese, Traditional Chinese, Russian, Korean,French, Italias, German, Turkish, Spanish |
| Interface | USB/Blue tooth to PC for transferring data, wireless printing, USB for charging |
| Power on/off | Auto/Mamual |
| Power supply | 3.7Y Li-ion rechargeable battery |
| Working environment | -20℃-+70℃ |
| Dimension(mm) | 156×44×22 |
| Net weight(g) | 115 |
| Standards | ASTM A956, DIN 50156, EN ISO 16859, GB/T 17394-1998 |
