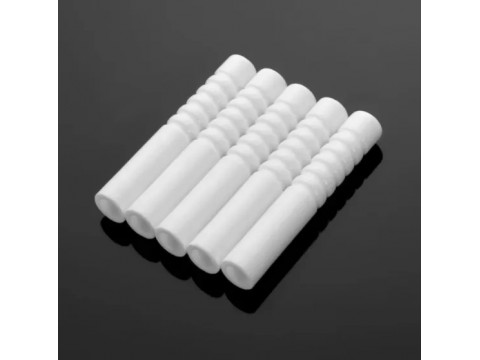

Alumina(Al203) Igniter
A Ceramic Igniter electrodes is a simple, but important component of the system that allows instantaneous ignition of a burner in cooking hobs, built-in ovens and free-standing cookers. Moreover, in addition to the traditional functions, it can be exploited, combined with an electronic card, as a flame detector device too, especially on top-of-the-range hobs, in which it re-ignites the flame in case of unintentional switching-off. Key success factors of spark plugs are numerous: accurate choice of raw materials, constant monitoring of manufacturing processes and close co-operation with our customers.
Specification
| Material code | characteristics | Density(g/cm³) | Young's Moulus(GPa) | Flexural strength(MPa) | Fracture Toughness(MPa*m1/2) | Thermal Expansion RT~800°) | Thermal Conductivity(w/m*k) | Volume Resistivity(Ω*cm) | ||
| ALP01 | General Purpose High Rigidiy | 3.9 | 370 | 440 | 3~4 | 7.7 | 33 | ＞10⋀14 | ||
| Alumina99.5% | ||||||||||
| ALP02 | High Purity High Rigidity | 3.9 | 370 | 450 | 3~4 | 7.9 | 30 | ＞10⋀14 | ||
| Alumina99.9% | ||||||||||
Our Company
Wuxi Special Ceramic Electrical mainly produces alumina, Silicon nitride, Zirconia, Steatite, Boron nitride, Cordierite,mullite products, widely used in metal welding, electronic conductor, mechanics, assembling, insulation, chemicals, instrument, textile, nuclear industry, aerial field.We accept trial produce according to the drawing or sample.It usually takes 15 days to finish trial product.Mass produce usually takes 30 days.Goods' package is carton or PLT.It can be negotiable with each other.
We mainly sell goods to toshiba lighting group in Japan and Europe.Our aim is to deliver goods with high quality at quick delivery date.
