Product Description
Specification:

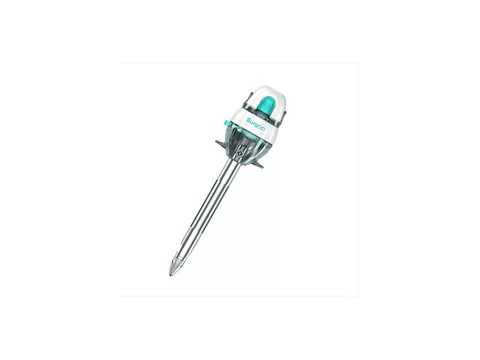

Abdominal Surgery 5/10/12mm Disposable Laparoscopic Optical Trocar offers 7 specifications that can be used in various types of laparoscopic surgeries.
Under the complexity of abdominal conditions, it gives visual feedbacks when puncturing with the help of endoscope to avoid the potential damage to the organs by mis-operation.
| Product Code-Endopass | Diameter | Length |
| T5L075V | φ5mm;Universal sleeces | 75mm |
| T5L100V | φ5mm; Universal sleeces | 100mm |
| T5L150V | φ5mm; Universal sleeces | 150mm |
| TI0L100V | φ10mm; Universal sleeces | 100mm |
| TI0L150V | φ10mm; Universal sleeces | 150mm |
| TI2L100V | φ12mm: Universal sleeces | 100mm |
| TI2L150V | φ12mm: Universal sleeces | 150mm |
Main Features:
1. Funnel Lead-In
Funnel shape Lead-In enabling smooth insertion, one-hand surgical instrument exchanging.
2. Stable Thread Design
Unique thread-shaped surface with inverted tooth design to increase sleeve fixation on abdominal wall and avoid sliding when the instruments entering or withdrawing from the sleeve.
3.None-bladed tip design
None-bladed tip separates tissues instead of cutting tissues in order to reduce the damage.
Transparent conical head gives clear visual feedbacks when endoscope entering through the obturator. Also it helps avoiding blindness insertion and organ injuries.
4.Endoscope secure lock
Easy operating tunnel lock which is used to secure the endoscope from sliding in order to provide stable visualization.
