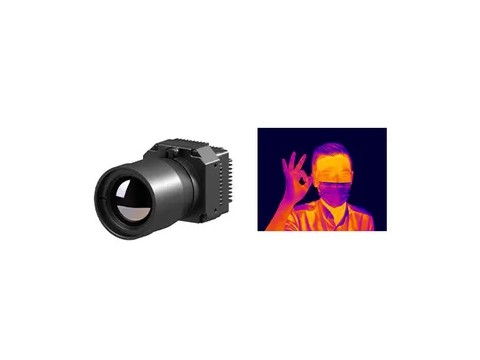

MegaPixel Plug Series 1280x1024 / 12μm Uncooled Infrared Camera Core with Ultra Clear Imaging
PLUG1212 is a large format of uncooled thermal imaging camera module with LWIR 1280x1024 resolution and 12µm detector, specially designed to meet high performance applications of thermal imaging.
With the cutting edge Vanadium-Oxide technology, PLUG1212 infrared camera core could remain superior environmental adaptability in complex and harsh weather conditions. Also it presents ultra clear image and has characteristics of a low-noise high sensitivity, stable performance.
Global Sensor Technology is committed to opening a new vision for the infrared thermal imaging industrial. We specialize in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules to provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.
- Detector Material: Vanadium Oxide
- Detector Resolution: 1280x1024 / 12µm
- Size: 56x56x40.2
- Weight: ≤220g
- Wavelength: 8~14µm (LWIR)
- frame Rate: 25Hz
| Model | PLUG1212 |
| IR Detector Performance | |
| Resolution | 1280x1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
| NETD | <30mk |
| Image Processing | |
| frame Rate | 25Hz |
| Start-up Time | <25s |
| Analog Video | / |
| Digital Video | HDMI/RAW/YUV/BT1120 |
| Extension Component | USB/Camerlink |
| Dimming Mode | Linear/Histogram/Mixed |
| Digital Zoom | 1~8X Continual Zoom, Step Size 1/8 |
| Image Display | Black Hot/White Hot/Pseudo Color |
| Image Direction | Horizontally/Vertically/Diagonally Flip |
| Image Algorithm | NUC/AGC/IDE |
| Electrical Specification | |
| Standard External Interface | 50pin_HRS Interface |
| Communication Mode | RS232-TTL, 115200bps |
| Supply Voltage | 5±0.5V |
| Typical Power Consumption | <2.0W |
| Physical Characteristics | |
| Dimension (mm) | 56x56x40.2 |
| Weight | ≤220g |
| Environmental Adaptation | |
| Operation Temperature | -40°C ~ +70°C |
| Storage Temperature | -45°C ~ +85°C |
| Humidity | 5%~95%, Non-condensing |
| Vibration | Random Vibration 5.35grms, 3 Axis |
| Shock | Half-sine Wave, 40g/11ms, 3 Axis 6 Direction |
| Optics | |
| Optional Lens | Fixed Focus Athermal: 19mm/25mm |
