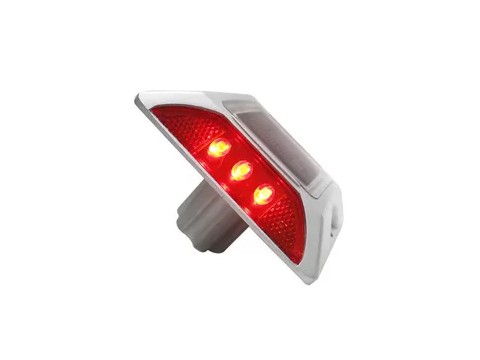

IP68 waterproof aluminum solar road studs CE approval with 2 years warranty
Quick Detail:
· Die-casting aluminum Shell
· Anti High-temperature
· IP68 protect
· CE approval
· 2 Years Warranty
· 20 tons weight resistance
· Good visible on foggy&rainy days
· Long lifespan
Description:
Solar studs are now widely used for controlling traffic flow with a wide number of applications. In practice, such systems operate well above the road surface with a number of well known and widely accepted colors, with lights in particular orientations to make the message to a driver clear and univocal, thereby improving the traffic flow of the road and enhancing safety aspects.
Specifications:
| Style No | CS-SR-805 |
| Solar Panel | 2V/150MA |
| Ni-mh Battery | 1.2V/600MAH High Temperate NI-MH Battery |
| LED Qty | 6PCS |
| LED Frequency | Flashed for 90times per minute or Stable |
| LED Color | Red, yellow, white, blue,green |
| Reflector Color | Red,Yellow,White,blue,green |
| Luminous intensity | 5000mcd-8000mcd |
| Lighting Time | 100h after fully charged |
| Material | cast aluminum,GE UV resistance PC |
| Visual Distance | ＞800meters |
| Product Size | 129*117*23MM,Shaft Lenght:54mm |
| Protect Level | IP68 |
| Work Temperature | -20 centigrade to +80 centigrade |
| Weight Resistance in static | ＞20 Tons |
| Weight | 600g |
| Carton Size | 60*28*28CM;20pcs/ctn |
| Warranty | One year |
Notices:
· 1. Open the packaging, check the products carefully, and take them gentely.
· 2. It should install it outside to get better sunshine
· 3. It should charge it and check it lighting before installation
Size Drawing:
