Standard:GB17761-2018 Clause 7.2.1,Clause 7.2.2 , Clause 7.2.4, ISO4210.
Application: This tester is used for the detection of electric bicycle speed limit and pedal riding ability. According to the relevant requirements of GB17761-2018, GB3565-2005 and other standards, the safety performance and energy consumption of electric bicycles and other products are tested. The data can be stored and transmitted. The test parameters include deceleration, speed, time, distance, force, current, voltage, and so on.
Operating conditions:
1,Test environment: -5 °C ~ 35 °C, wind speed <3m / s.
2,Test road:
1) Road pavement: concrete road pavement.
2) Road size: 3m (length) * 2m (width) * 20cm (thickness).
3) Friction coefficient between dry road surface and electric bicycle tire: minimum 0.5.
3,Cycling staff weight: total mass ≤ 75Kg.
Parameters:
1,It can test the safety performance of electric bicycle according to the requirements of GB17761-2018, voltage collection range: 24V/36V/48V, 48V/60V/72V.
2,The electric bicycle braking performance test can be carried out in accordance with the requirements of GB3565-2005.
3,The driving mileage test can be carried out as required.
4,A variety of test methods to meet the vehicle speed measurement of the vehicle's static state.
5,The electric bicycle safety performance test can be carried out in accordance with the requirements of GB17761-2018.
6,Instrument accuracy: ±2% (provided in the response file to provide proof of the technical parameters (manufacturer color pages or manuals or product manuals)).
7,Measuring range:
| NO. | Item | Range |
| 1 | Speed | 0.5～200.0km/h |
| 2 | Distance | 0～20000m |
| 3 | Time | 0～99999s |
| 4 | Force | hand brake 0 ~ 200N |
| 5 | Current | 0～100A |
| 6 | Voltage | 0～200V |
(Provided materials (manufacturer color pages or instruction manuals or product manuals) that reflect this technical parameter are provided in the response file)
8,Test parameter resolution:
| NO. | Item | Resolution |
| 1 | Speed | 0.01km/h |
| 2 | Distance | 0.01m |
| 3 | Time | 0.01s |
| 4 | Force | 0.1N |
| 5 | Current | 0.1A |
| 6 | Voltage | 0.1V |
The main configuration:
1,1 set of professional version test software
2,Control display device 1 PC
3,GPS sensor 1 Set
4,Speed sensor 1 Set
5,Brake operating force component 1 Set
6,Current sensor 1 Set
7,Control computer 1 PC
8,Brake spray device 1 Set
9,Test accessory 1 Set

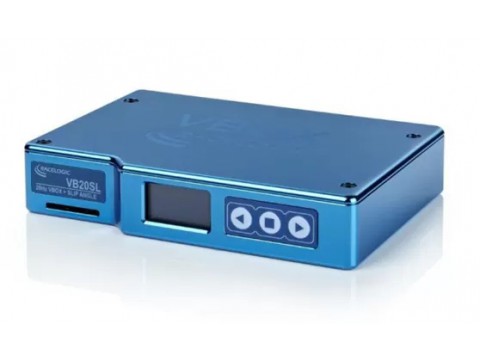

10,import VBOX II SX (RLVB2SX) road vision 1 PC
