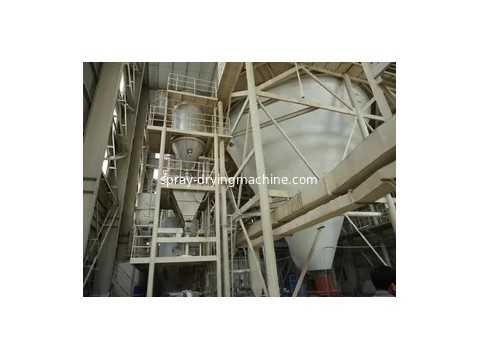

YPG Model Detergents powder Pressure type Nozzle Spray Dryer Machine
1. General description
Spray dryer is suitable for solution, suspension, slurry, paste material, etc. Liquid material is atomized to small fog drops. And fog drops contact with hot air directly in the drying tower. Moisture content is evaporated instantly. So spray dryer features high efficiency, high mass transfer area, and short drying time, in general it is 5~30 seconds. Operating temperature can be adjusted according to actual situation, in general inlet air temperature is 150~500°C. And its automation control degree is control, environment solution environment can be solved.
2. Features
- The machine has high efficiency to collect dust
- Without the phenomenon of adhering wall
- Energy saving and high efficiency
- Particularly it is suitable for thermal sensitive material
- Short drying time
-
3. Technical parameters
|
Model Item |
YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 | YPG-500 | YPG-1000~2000 | ||
| Water evaporation(kg/h) | 25 | 50 | 100 | 150 | 200 | 300 | 500 | According to actual situation | ||
| Diaphragm pump | Power (Kw) | 0.35 | 4 | 7.5 | 11 | 15 | 22 | 30 | ||
| Pressure (Mpa) | It can be regulated from 0.6-5. In general, it is 1-3 | According to actual situation | ||||||||
| Heating source | Electricity | Electricity + steam | Hot air furnace | |||||||
| Diameter of tower (mm) | 1300 | 1800 | 2400 | 2600 | 2800 | 3200 | 3800 | According to actual situation | ||
