SPECIFICATIONS:
Size: 1-22"
Capacity: 3.6-5400m3/h
Head: 6m-125 m
Handing solids: 0-130mm
Concentration: 0%-70%
Materials: Rubber, Polyurethane,High chrome, Ceramic, Stainless steel etc.

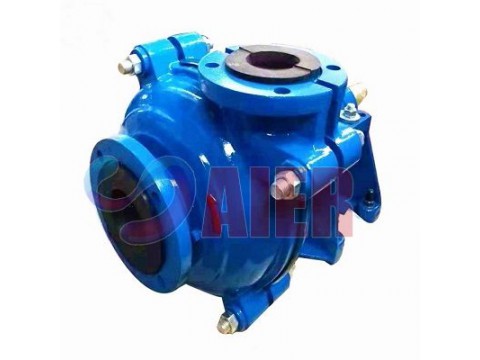

AIER® WAJ Heavy Duty Slurry Pump
Typical Applications
SAG mill discharge, ball mill discharge, Rod mil discharge, Ni acid slurry, coarse sand, coarse tailings, phosphate matrix, minerals concentrate, heavy media, sugar beet, dredging, bottom/fly ash, lime grinding, oil sands, mineral sands, fine tailings, slag granulation, phosphoric acid, coal, flotation, process chemical, pulp and paper, FGD, cyclone feed, etc. We are Rubber Slurry Pump Supplier.
Features
The frame plate for WAJ series pumps has interchangeable hard metal or pressure moulded elastomer liners. The impellers are made of pressure moulded elastomer liners.
The shaft seals for WAJ series can be packing seal, centrifugal seal or mechanical seal.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. There are many drive modes for option, such as V-belt, flexible coupling, gearbox, hydraulic coupler variable frequency, silicon controlled speed, etc. Among them, the flexible shaft coupling drive and V-belt feature of low cost and easy installation.
Pump Notation
|
200WAJ-ST: |
100WAJ-D: |
|
200: Outlet diameter: mm |
100: Outlet diameter: mm |
|
WAJ: Pump type: Rubber lined |
WAJ: Pump type: rubber lined |
|
ST: frame plate type |
D: frame plate type |
