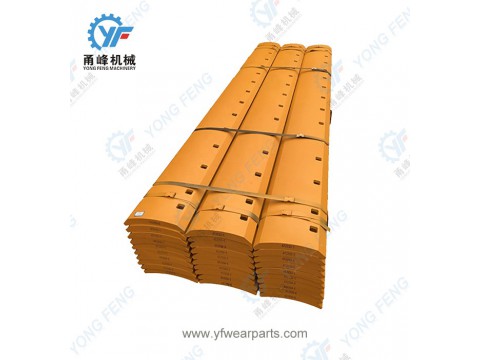

4T2233 Caterpillar grader blade
Click image to view original image
Price: Negotiable
Min.Order:
Supply
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: 2023-01-22 [Expired]
Updated on: 2022-01-22 17:28
Hits: 13120
Company Detail


Details

4T2233 Caterpillar grader blade

Description: grader blade

Part Number: 4T2233

Dimension: 2133*203*25 15*3/4"

Holes: 15

Bolt: 4F7827

Nut: 2J3506

Washer: 5P8248

Model: 3304,3306,3406,130G,14G,16G,12G,140G

Material: carbon steel or boron steel

Hardness: HB280-320 or HB450-500

More Details

Motor grader blades & end bits features:

OEM part number or custom design

Grader blade: C80 high carbon steel and heat treated 30MnB boron steel

Grader end bit: heat treated 16Mn or C45 and heat treated 30MnB boron steel

Curved grader blade: thickness from 13-25mm, width from 152-203mm

Flat grader blade: thickness from 16-75mm, width from 203-406mm

Serrated grader blade both curved and flat

Provide casting ripper shank and teeth

We manufacture a complete range of Cutting Edges, Blades, End Bits & Segments, for all models of Graders, Bulldozers, Loaders, Excavators, Scrapers and applications.
